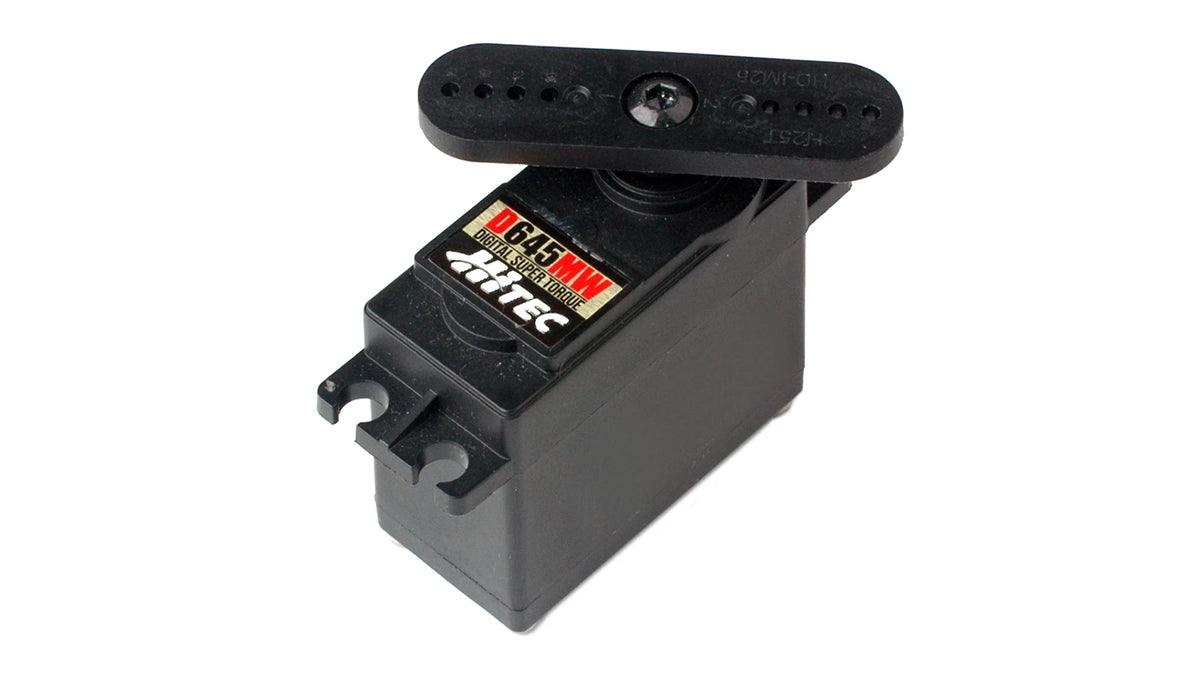

Servo D645MW

The HiTEC servo motor D645MW is a high-performance digital servo for demanding positioning tasks that require precise and repeatable motion. As a compact actuator, it can be integrated into many control concepts and enables clean interfacing with existing systems. The drive uses a cored metal brushed motor in combination with an analog potentiometer for position feedback, supporting sensitive control and clear reporting of the servo position.

Control via PWM and TTL ensures that the D645MW servo motor works with common controllers without major effort. The operating voltage range from 4.8 to 7.4 V provides flexibility for different on-board power systems. The metal gear train is designed for high load capacity and transmits actuating torques of up to 126 N·cm reliably and with minimal loss. Overall, the servo motor combines precise signal processing, easy integration and durable mechanics to create a compelling solution for professional positioning applications.
