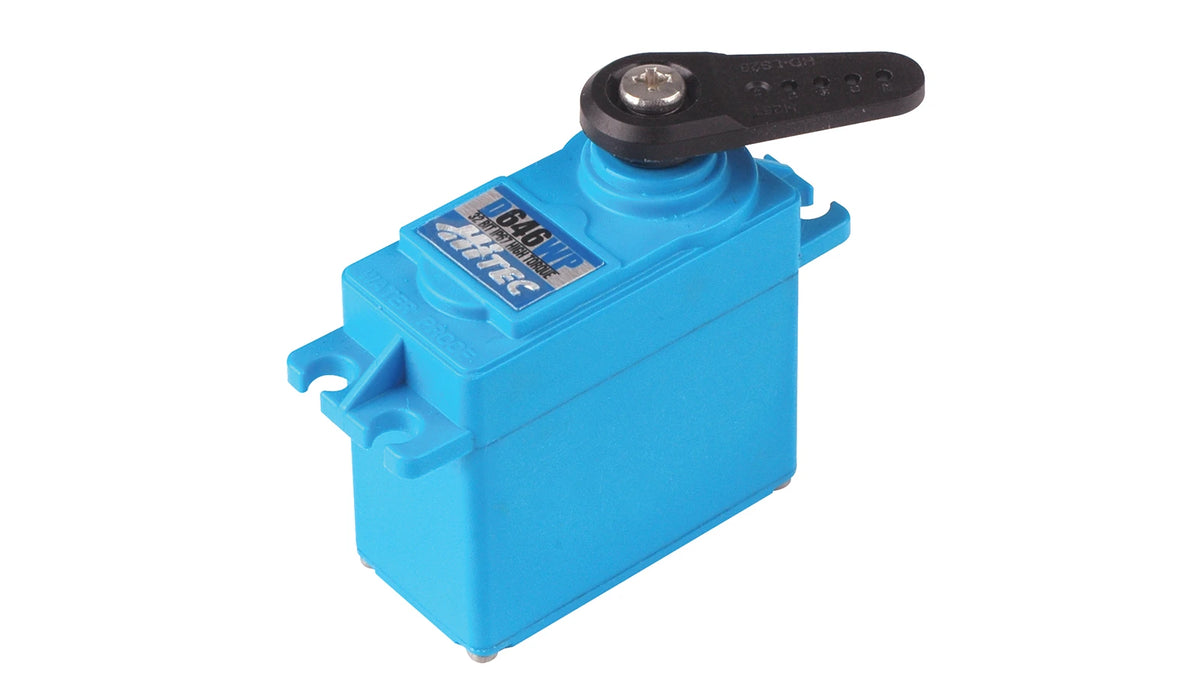

Servo D646WP

The compact HiTEC D646WP servo motor is designed for demanding positioning tasks in harsh environments. As a powerful, programmable actuator with PWM and TTL control, it can be integrated into modern control concepts with minimal effort and precisely tuned to the desired characteristics. A potentiometer provides position feedback and supports sensitive control with accurate centering, ensuring that repeatable movements are executed reliably.

The drive uses a robust brushed motor that delivers instantly available torque and enables dynamic positioning movements. The metal gear train transmits actuating torques of up to 113 N·cm (1.00 lbf·in) reliably and with minimal loss. With an operating voltage range from 4.8 to 7.4 V, the servo remains flexible for use with different on-board power systems. The IP67 protection rating effectively shields the internal components from dust and temporary immersion, enabling use in humid or contamination-prone environments. Overall, the servo motor combines rugged mechanics, secure signal processing, and straightforward integration into a compelling solution for professional applications.
