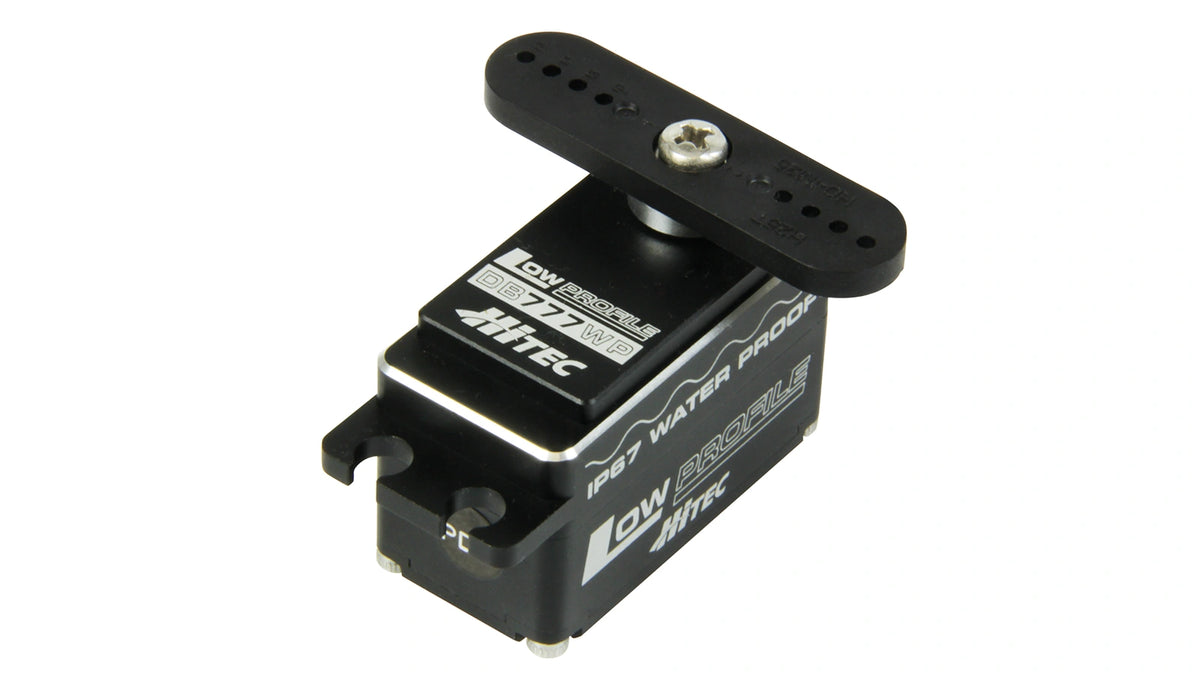

Servo DB777WP

When extreme response speed is required, this HiTEC servo motor sets new standards. The brushless DC motor translates commands exceptionally quickly and smoothly, while the contact analog potentiometer delivers immediate, high-resolution feedback and stabilizes centering. As a programmable digital servo with a 32-bit architecture, its control behavior can be tuned precisely to the application, clearly improving repeatability and path smoothness. Delivering 107 N·cm (151.5 oz-in) of torque, it provides solid actuation; a transit time of 0.06 s/60° enables very fast cycles. PWM and TTL are proven, field-tested interfaces and allow quick integration into existing controllers, shortening commissioning and adjustments. The 4.0–8.4 V operating range offers flexibility in power design, and the IP67 rating protects against dust and temporary immersion. At just 68.0 g (2.4 oz), setups remain light, while the DB777WP delivers precise performance for demanding motion tasks.
