Servo MD245MW
Servo MD245MW
Servo MD245MW
Servo MD245MW

Servo MD245MW

3,5-8,4 V | max. 62,76 N/cm | max. 0,11 Sec/60° | IP4X

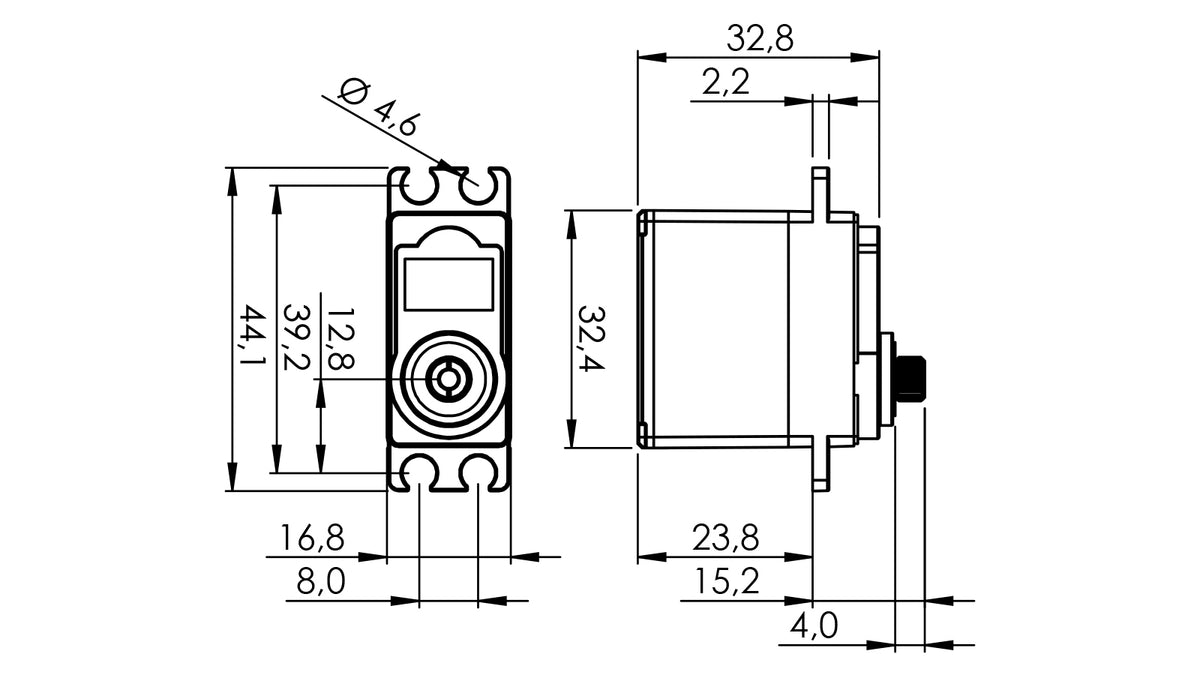

PWM / TTL | LWH 32,4 x 16,8 x 32,8 mm | 32,6 g
  • 1x HiTEC Servo MD245MW, Servo arm (M-O25), Mounting hardware
  • 1-01247
  • In stock, ready to ship
Price
Regular price €98,90
Regular price Sale price €98,90
Save €-98,90
/
inkl. MwSt.
Shipping calculated at checkout.

Fast, precise, and compact: The HiTEC servo motor MD245MW delivers repeatable positioning with crisp response. A contactless magnetic encoder provides wear-free, high-resolution position feedback. The coreless, low-inertia motor turns commands into agile motion while running smoothly. The 3.5–8.4 V supply range simplifies power architecture and leaves room for performance tuning. At 7.4 V, the digital servo reaches 0.11 s for 60° and provides 62 N·cm of torque, ideal for rapid sequences with precise stops. The metal gear train transfers power reliably over the long term. With programmability, control behavior can be tailored to practical motion profiles.
Delivery times

Delivery will be made on the next working day or after receipt of payment.
According to experience, delivery times are:

  • Germany: 2-3 working days
  • European Union: 5-8 working days
  • United Kingdom 5-8 working days
  • Switzerland 8-12 working days
  • Ukraine/Iceland/Faröere 8-12 working days
Should you require any further information, please contact us.

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

Technical Download

  • 3D CAD model servo MD245MW.stp Download
