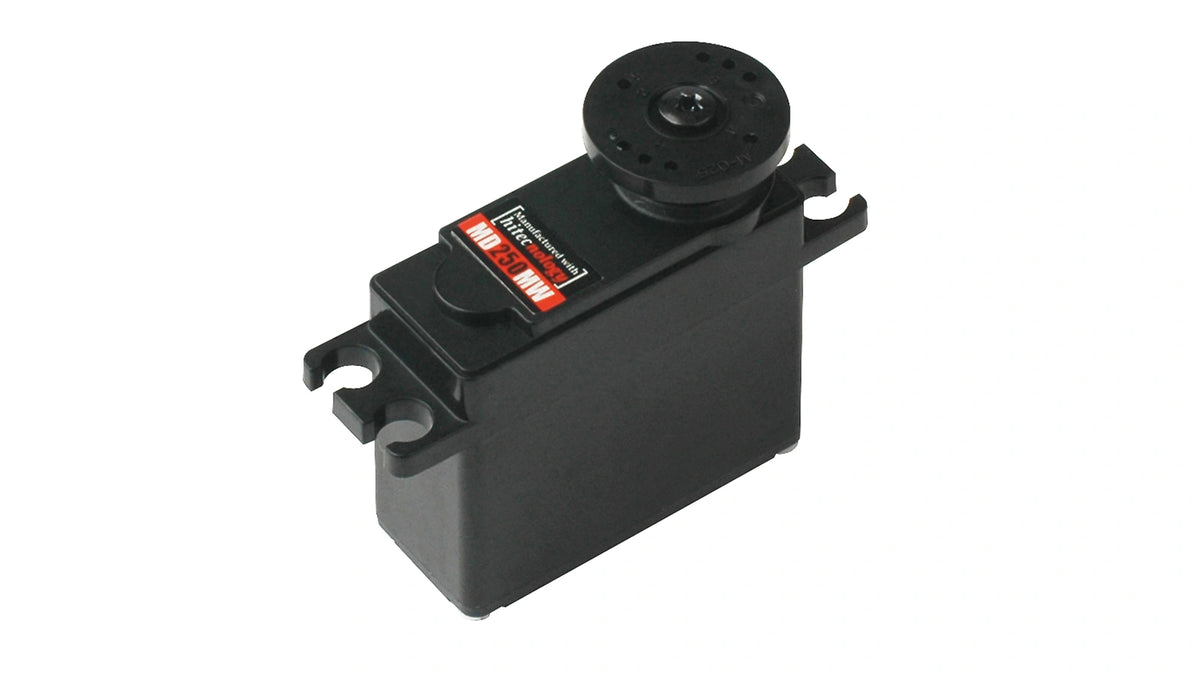

Servo MD250MW
Servo MD250MW
Servo MD250MW
Servo MD250MW

Servo MD250MW

3,5-8,4 V | max. 73,55 N/cm | max. 0,13 Sec/60° | IP4X

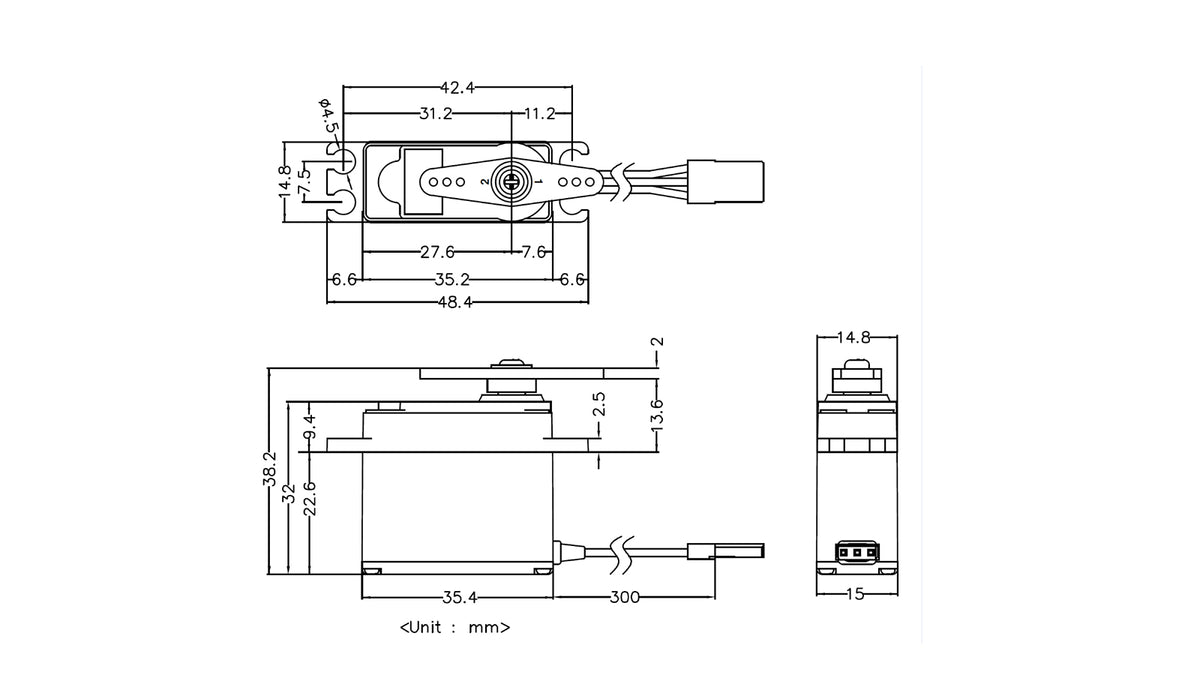

PWM / TTL | LWH 35,4 x 15 x 32 mm | 38,3 g
  • 1x HiTEC Servo MD250MW, Servo arm set (M-I25, R-ML25), Mounting hardware
  • 1-00707
  • In stock, ready to ship
Price
Regular price €74,00
Regular price Sale price €74,00
Save €-74
/
inkl. MwSt.
Shipping calculated at checkout.

The servo motor features a non-contact magnetic encoder for wear-free position feedback and precise centering. Via the proven PWM interface, the actuator integrates effortlessly into existing controllers, while its programmability allows exact tuning to your application. At 7.4 V, the brushed motor delivers a swift transit time of 0.13 s per 60° combined with a strong torque of 73 N·cm. The wide supply range of 3.5–8.4 V provides flexibility in power architecture. A metal gear train ensures long-lasting durability and reliable power transmission. In this way, the MD250MW unites speed and control in a compact servo.
Delivery times

Delivery will be made on the next working day or after receipt of payment.
According to experience, delivery times are:

  • Germany: 2-3 working days
  • European Union: 5-8 working days
  • United Kingdom 5-8 working days
  • Switzerland 8-12 working days
  • Ukraine/Iceland/Faröere 8-12 working days
Should you require any further information, please contact us.

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

Technical Download

  • 3D CAD model servo MD250MW.stp Download
