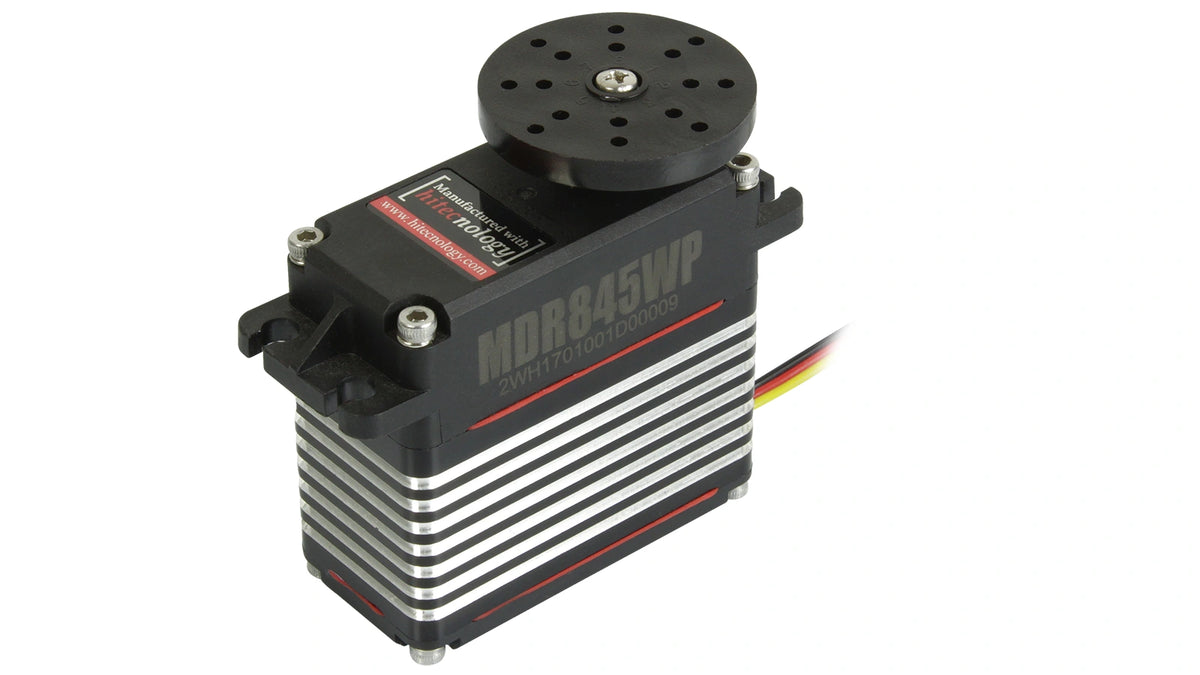

Servo MDR845WP

The HiTEC servo motor MDR845WP enables continuous rotation and multi-turn travel up to ±1800° for applications requiring endless positioning. This programmable digital servo uses a contactless magnetic encoder for wear-free, repeatable position data, while the brushed motor executes commands directly with fine controllability. At 7.4 V, the actuator achieves 0.17 s per 60° and delivers 490 N·cm (43.37 lbf·in) of torque, ensuring controlled, dynamic motion over multiple revolutions. The proven PWM/TTL interface simplifies integration into existing control systems, and the 4.0–8.4 V supply range provides design flexibility. Rated IP67, it is dust-tight and resistant to temporary immersion, ensuring reliable operation in humid, splash-exposed environments. The result is a servo that combines flexible kinematics with precise control and stable communication.
