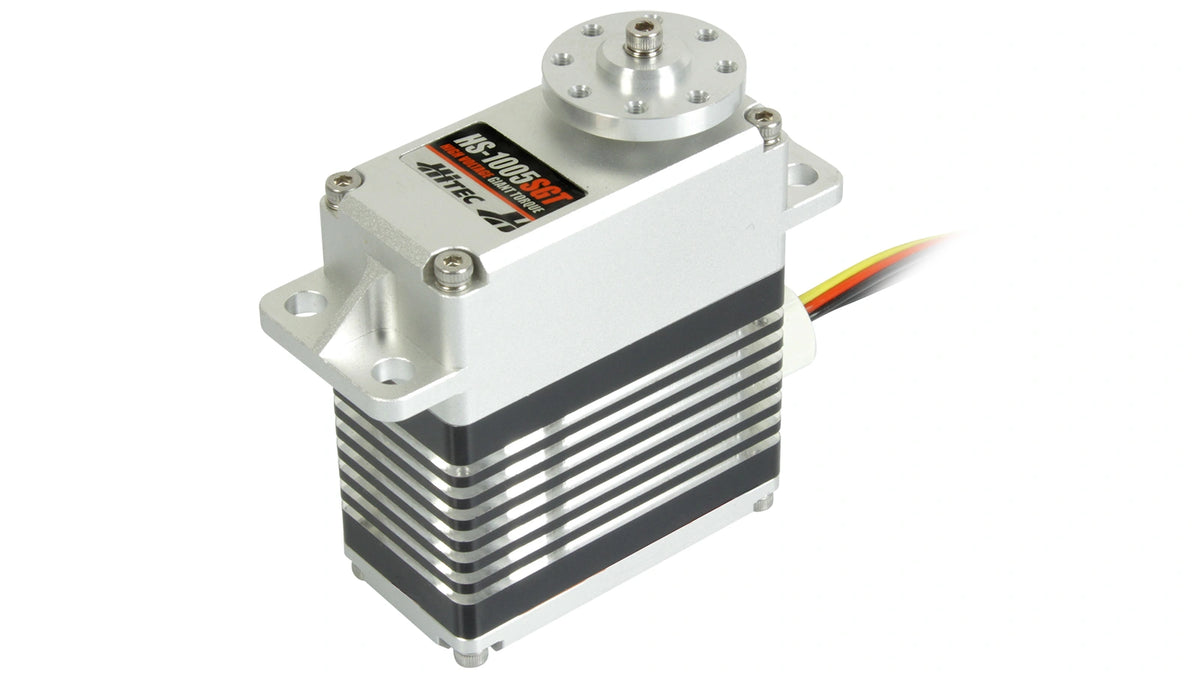

Servo HS-1005SGT

The HiTEC HS-1005SGT servo motor delivers maximum pulling power with clear feedback and a robust setup for harsh environments. A potentiometer provides precise position feedback and stable centering, while the proven PWM interface ties the actuator into existing controllers with ease. At 14.8 V, the brushed motor achieves 0.19 s per 60° and 1078 N·cm of torque. Separate supply domains support flexible architectures: motor 9.0–16.8 V, signal 3.5–8.4 V. A steel gear train engineered for high torque transfers power efficiently and keeps operation smooth. With IP54 protection, the servo resists dust and splashing water. The HS-1005SGT combines precision with immense power reserves in a compact industrial servo.
