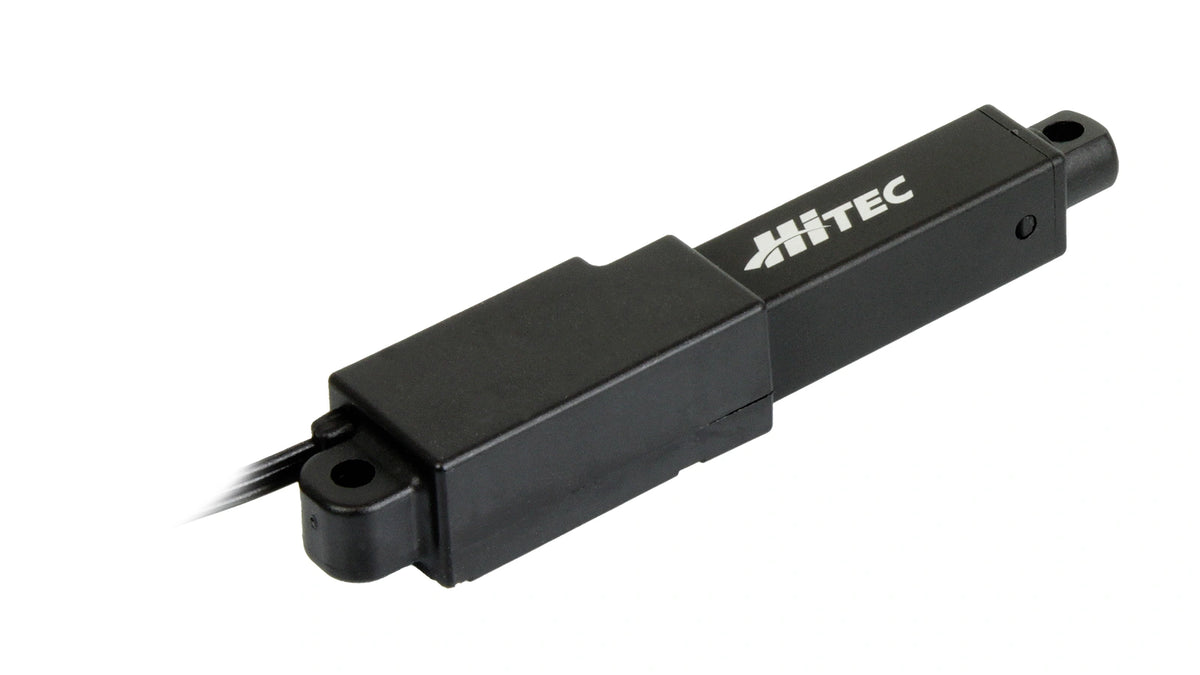

Linear Actuator HLS12-30380

The HiTEC linear actuator HLS12-30380 brings precise linear motion in a compact footprint and integrates quickly via its proven PWM interface. This servo motor uses a brushed motor with a metal core and a durable metal gear train to ensure long-lasting power transmission and clean starts. Programmable behavior adds application flexibility without complicating control. A 30 mm stroke (1.18 in) working through a 380:1 gear ratio delivers finely metered feeds at 4.1 mm/s (0.16 in/s), while the actuator provides up to 218 N of thrust for confident force delivery in tight spaces. The balanced combination of drive, gearing, and control yields repeatable positioning and a smooth, controlled response. When clear signals, controlled dynamics, and compact integration matter, this HiTEC servo is a strong choice for precise, reliable linear motion.
