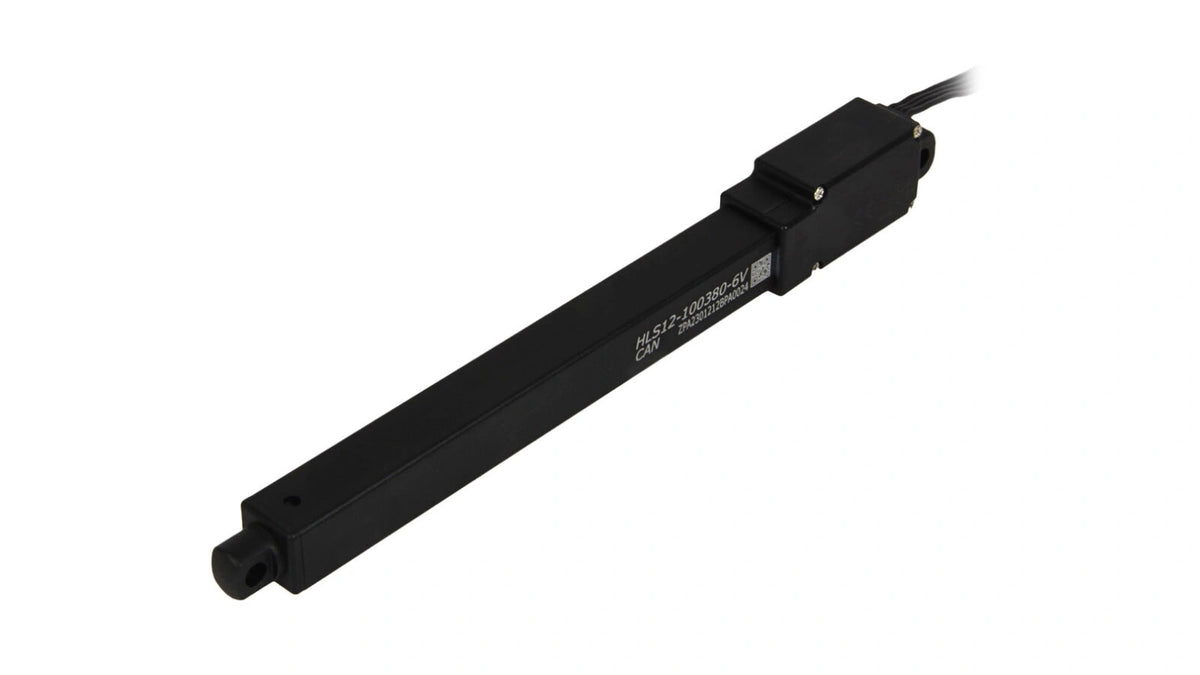

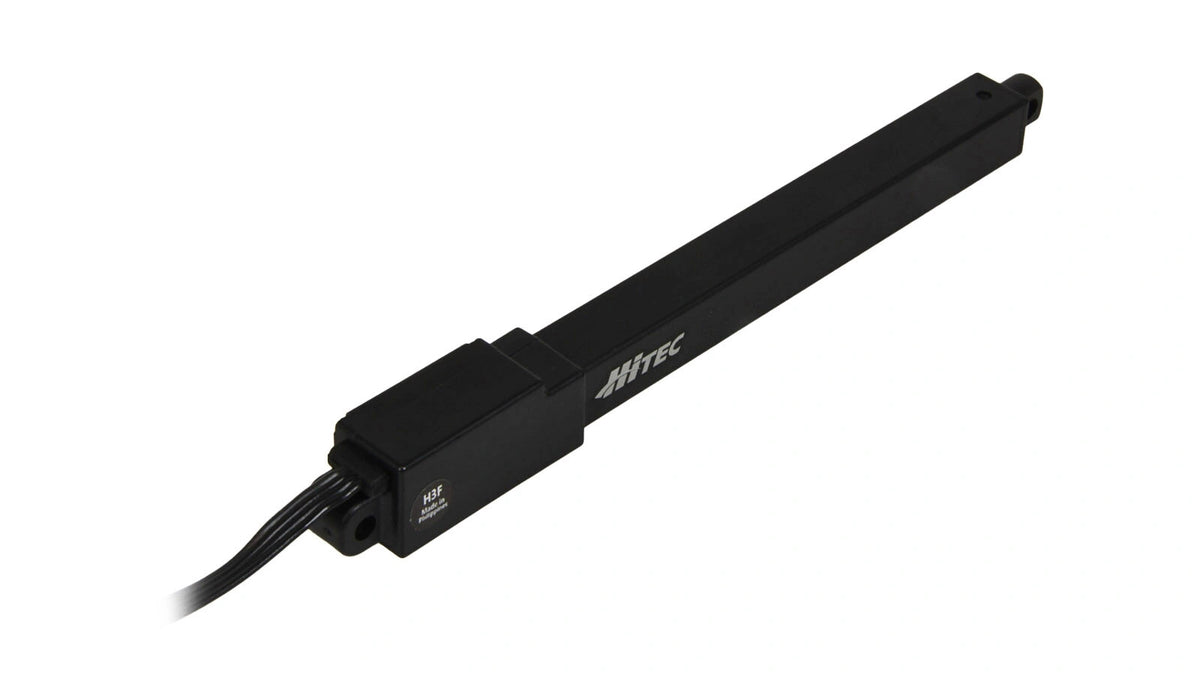

Linear Actuator HLS12-CAN-100380

The HiTEC linear actuator HLS12-CAN-100380 combines a compact footprint with high thrust and clear bus communication via CAN 2.0A/B. A brushed motor with a metal core works with a durable metal gear train to deliver smooth, reliable force across the 100 mm (3.94 in) stroke. Programmability adds flexibility without complicating control. With a 380:1 gear ratio, it provides finely metered feeds at 4.1 mm/s (0.16 in/s) and up to 217.71 N (48.96 lbf) of thrust. The 4.0–8.4 V operating range supports stable performance and straightforward power planning, bringing precise motion and repeatable positioning in a space-saving design.
