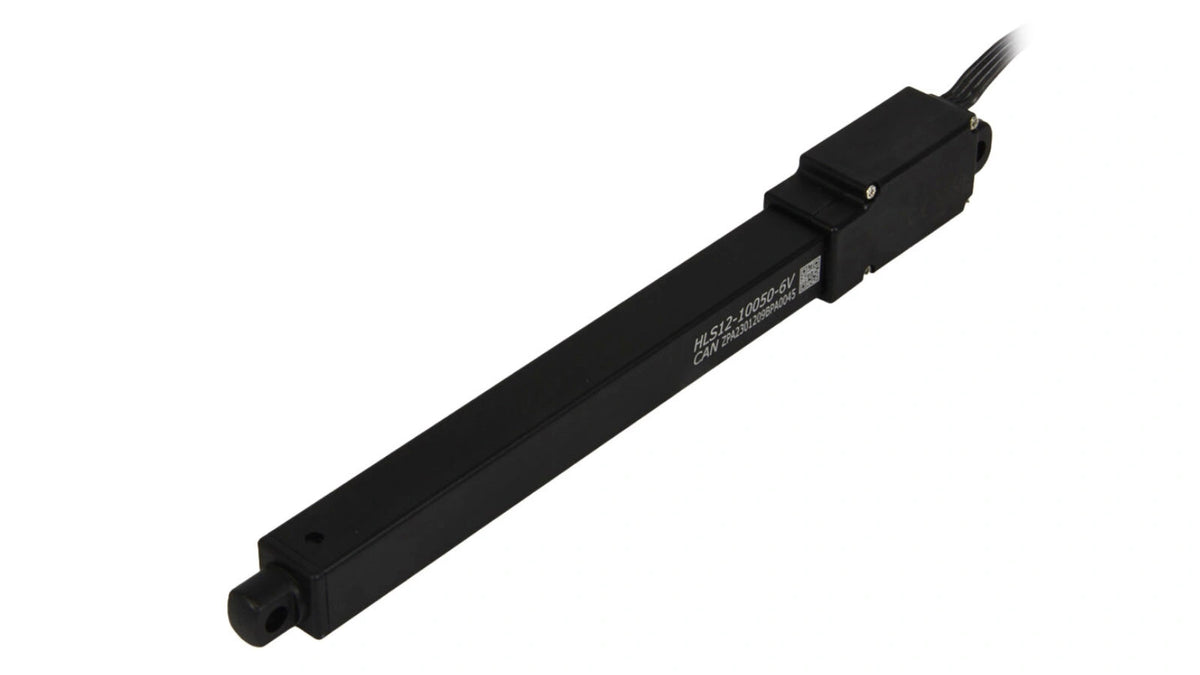

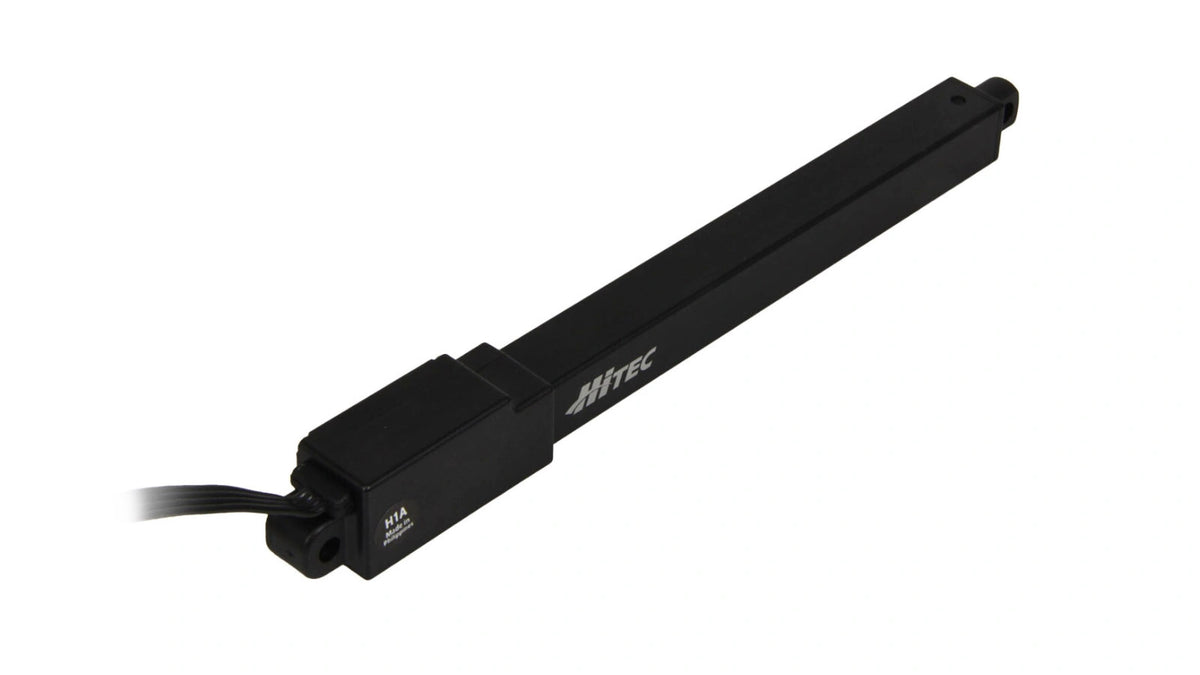

Linear Actuator HLS12-CAN-10050

The HiTEC Linear Servo HLS12-CAN-10050 combines a compact footprint with high speed and clear bus communication via CAN 2.0A and CAN 2.0B. A brushed motor with a metal core works with a robust metal gear train to transmit power smoothly across the 100 mm (3.94 in) stroke. Programmability adds extra flexibility. With a 50:1 gear ratio it delivers dynamic feeds at 30.9 mm/s (1.22 in/s) and provides up to 30.40 N (6.83 lbf) of thrust—ideal for fast, short-cycle positioning with smaller loads. The 4.0–8.4 V operating range simplifies power planning. As a linear actuator, this drive offers repeatable positioning, precise motion, and reliable networked control in a space-saving design.
