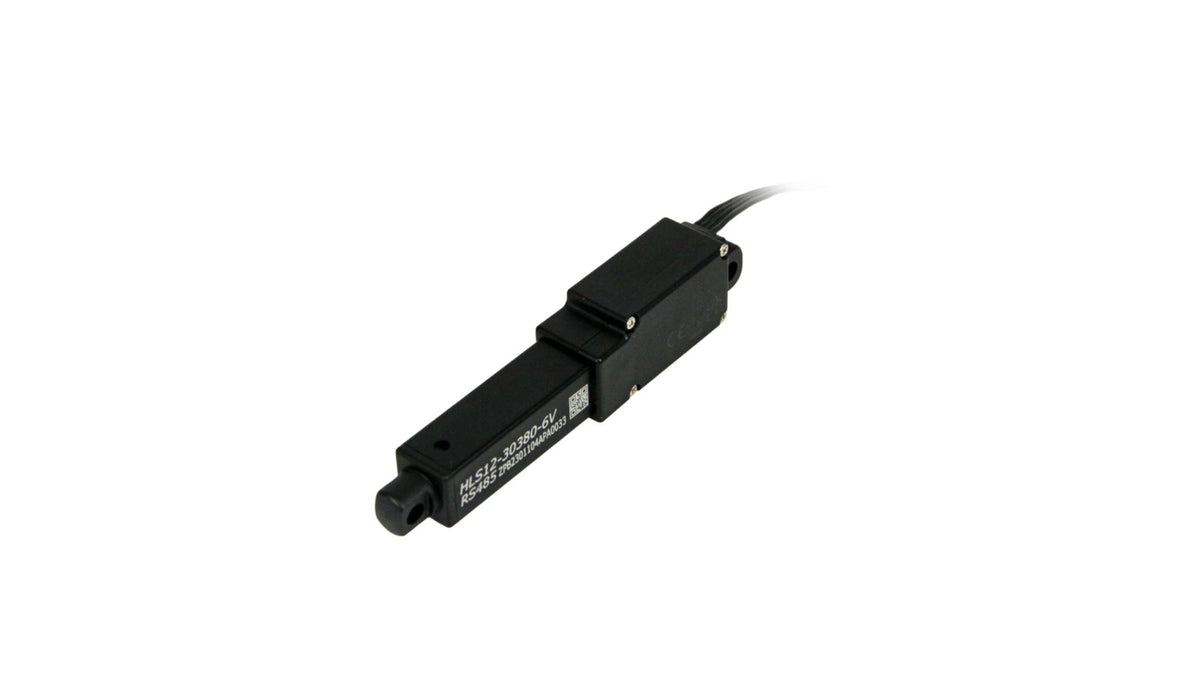

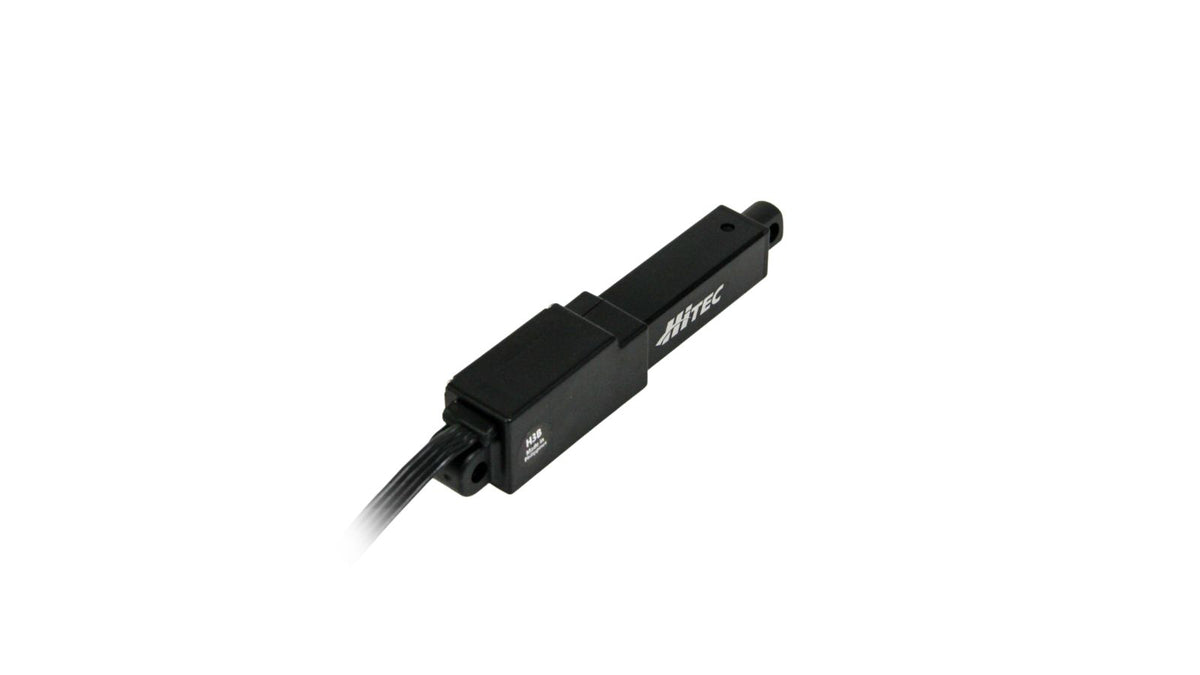

Linear Actuator HLS12-RS485-30380

Powerful in a small footprint: the HiTEC linear actuator HLS12-RS485-30380 delivers tightly controlled linear motion and integrates clearly via RS-485. A brushed motor with a metal core drives a robust metal gear train, transmitting power cleanly across the 30 mm (1.18 in) stroke. Programmability adds application flexibility. With a 380:1 gear ratio at 7.4 V, the drive reaches 4.1 mm/s (0.16 in/s) and provides up to 217.71 N (48.96 lbf) of thrust for confident positioning under load. The 4.0–8.4 V operating range simplifies power planning.
