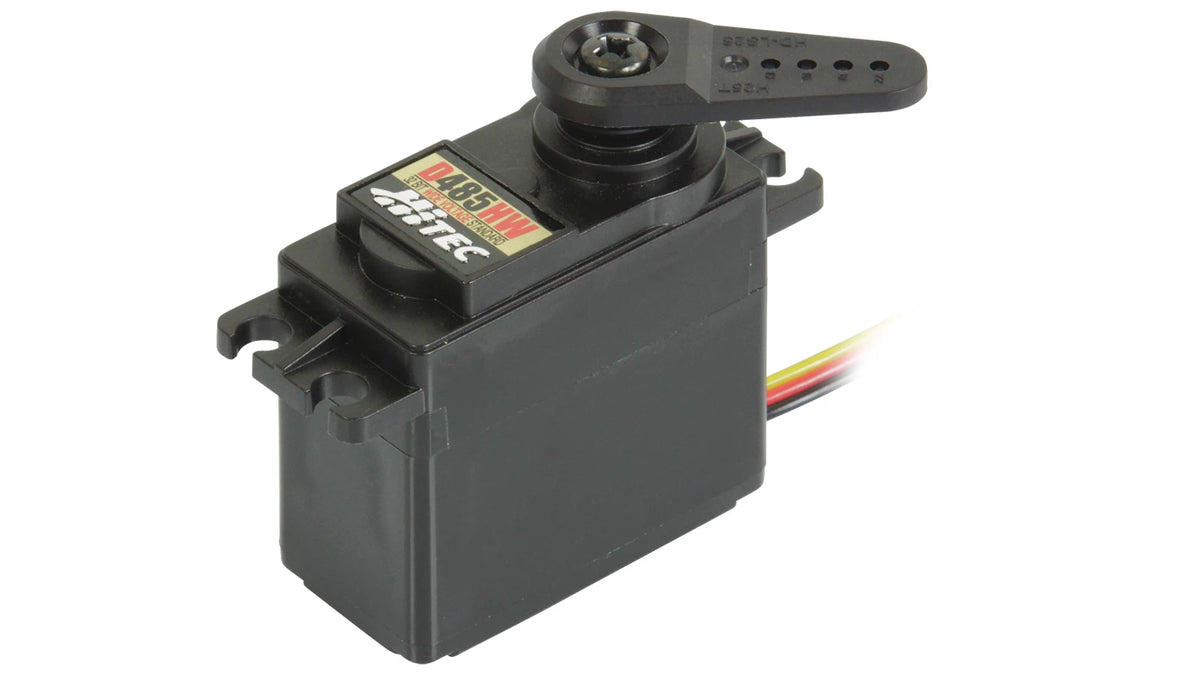

Servo D485HW

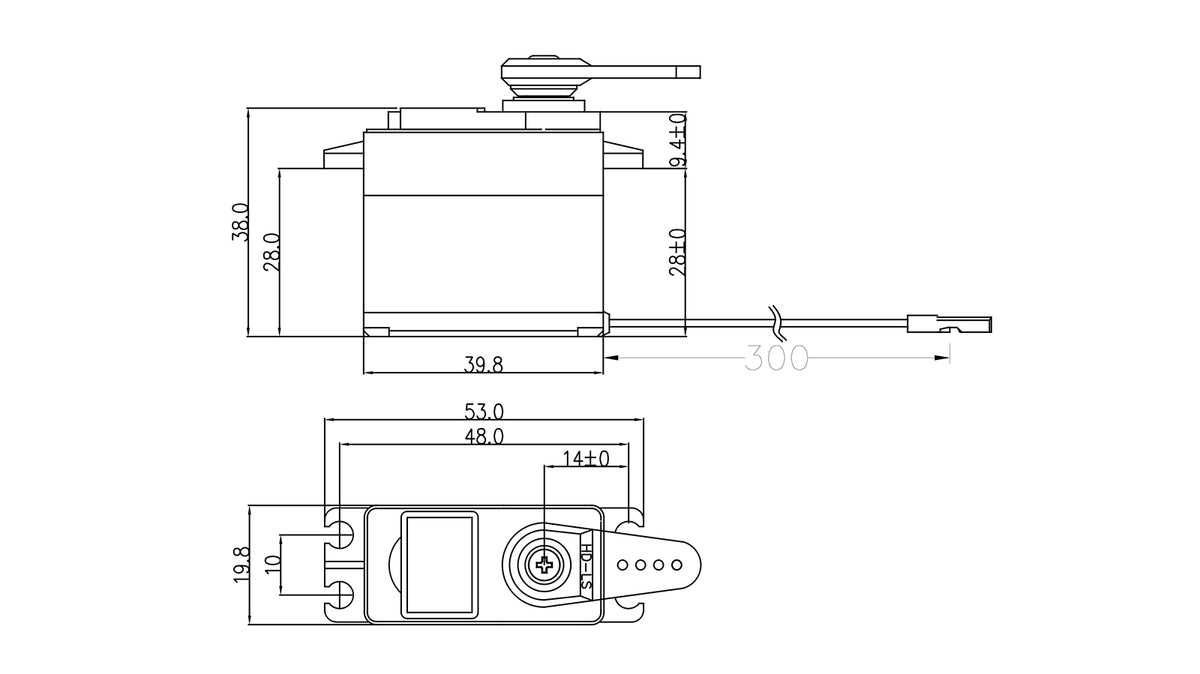

Compact, easy to integrate, precise: The HiTEC servo motor D485HW brings reproducible positioning movements to your control system fast. As a digital servo with PWM/TTL control, it integrates seamlessly into existing systems and reduces integration effort. The efficient brushed motor operates safely across 4.80–7.40 V, covering common onboard power networks. For production-adjacent environments, it is rated IP54—protection against harmful dust levels and splashing water. Dimensions: 40.00 × 20.00 × 38.00 mm (L×W×H, 1.57 × 0.79 × 1.50 in) — ensuring predictable mechanical planning even where installation space is tight. The high-performance polyamide geartrain combines low weight with robust load handling. In dynamic applications, the drive impresses with transit times of 0.20–0.15 s/60° and up to 73 N·cm of torque — clear reserves for fast, repeatable motion. Whether as a compact actuator in handling modules, for precise flap adjustments, or in automated fixtures: digital signal processing, defined interfaces, and clear installation dimensions provide the technical foundation for reliable performance.
