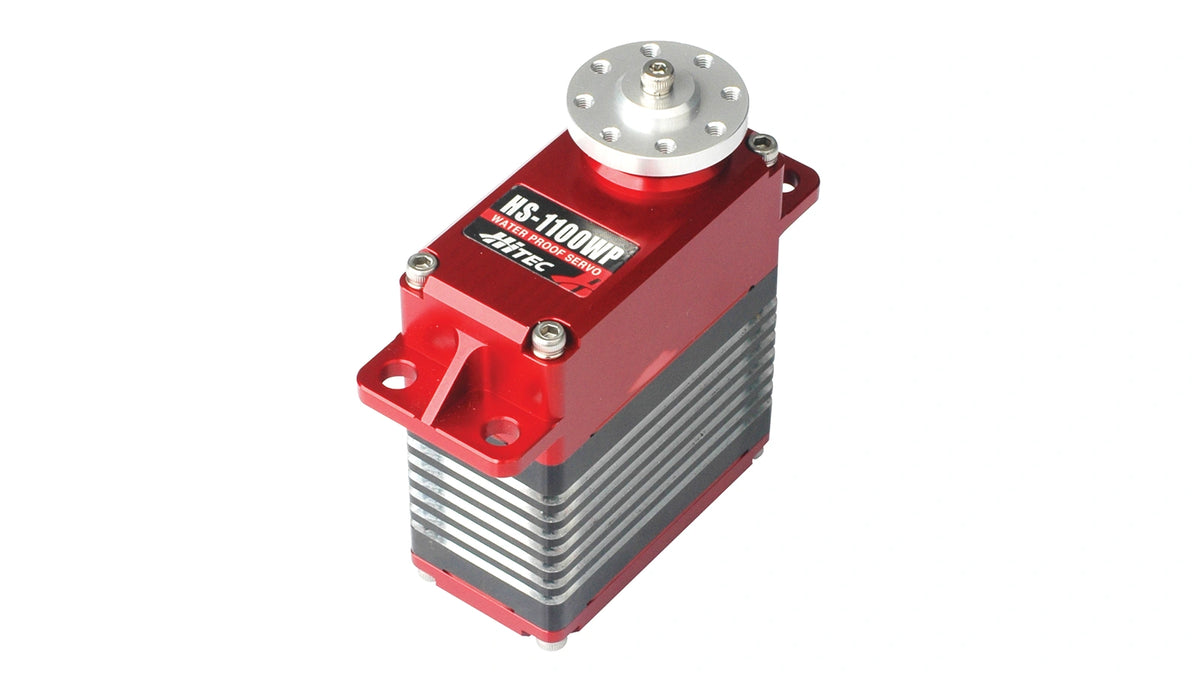

Servo HS-1100WP

Designed for demanding environments with IP67 protection, the HiTEC servo delivers maximum force and reliable feedback. A precise potentiometer ensures clean centering, while the proven PWM interface integrates the actuator into existing controllers with ease. At 14.8 V, the brushed motor reaches 0.19 s per 60° and provides 1078 N·cm of torque, enabling heavy movements to be executed safely and under control. Separate supplies open up flexible architectures: motor 9.0–16.8 V, signal 3.5–8.4 V. A steel gear train engineered for high torque transfers power efficiently and supports smooth operation under load. The HS-1100WP thus combines protection, pulling power, and precision in a compact servo that impresses in industrial applications with robust sealing and straightforward control.
