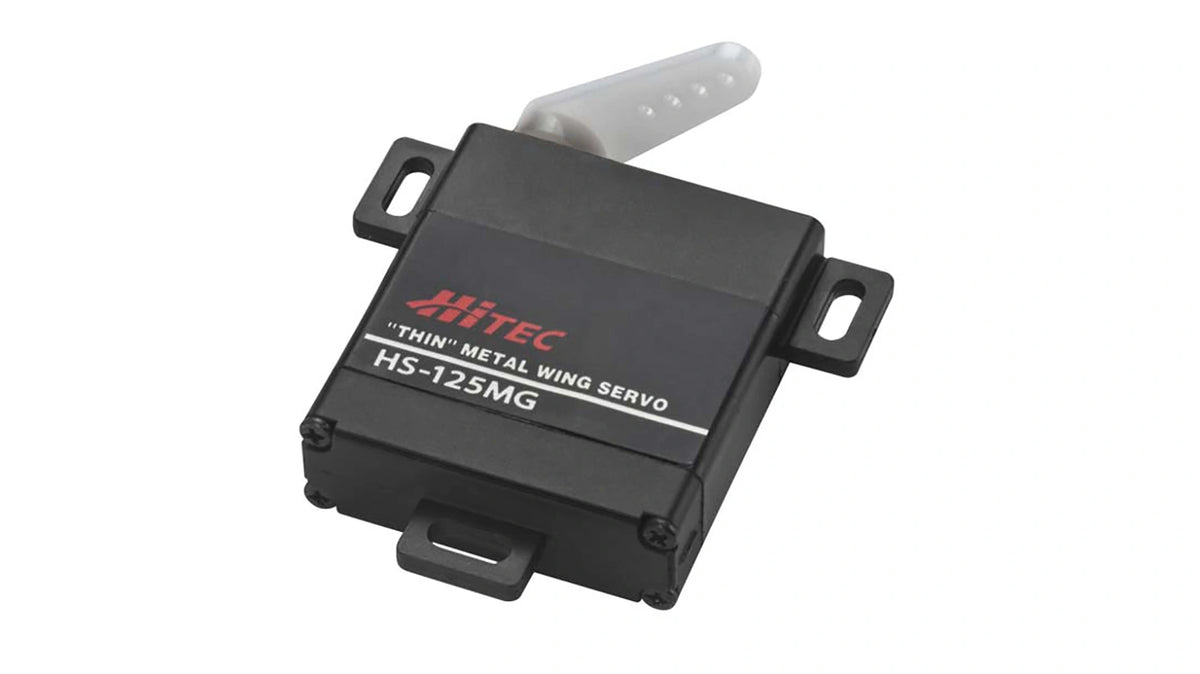

Servo HS-125MG

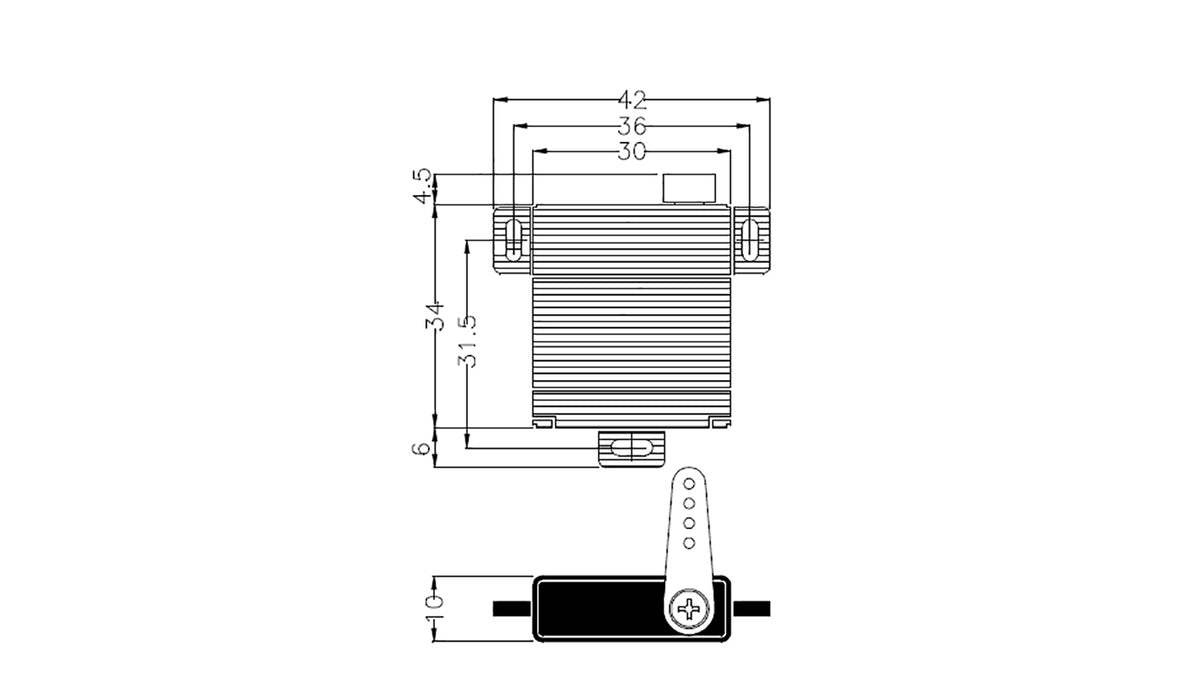

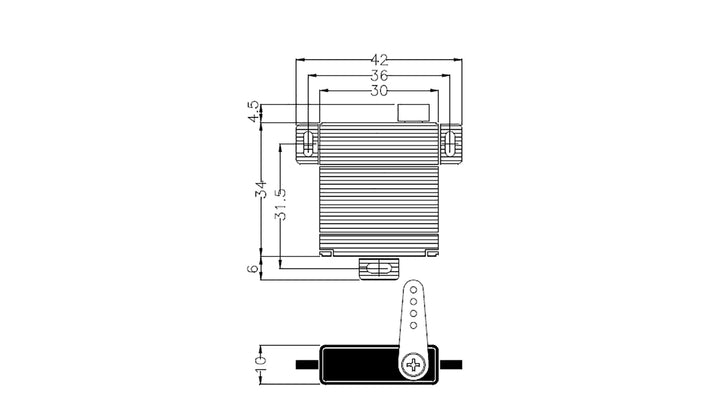

When speed and precise motion in ultra-slim spaces matter, this HiTEC servo motor delivers exactly that. The HS-125MG uses a potentiometer for accurate position feedback and runs as an analog servo over the proven PWM interface, making integration with existing controllers straightforward. Its iron-core brushed motor achieves a transit time of 0.13 s per 60° at 6.0 V and provides 34 N·cm of torque. A metal geartrain with a ball bearing ensures smooth operation and dependable power transfer during frequent cycles. With a 4.8–6.0 V operating range and a width of just 10 mm (0.39 in), the actuator is ideal for tight installations that demand fast response and clean centering without sacrificing reliability.
