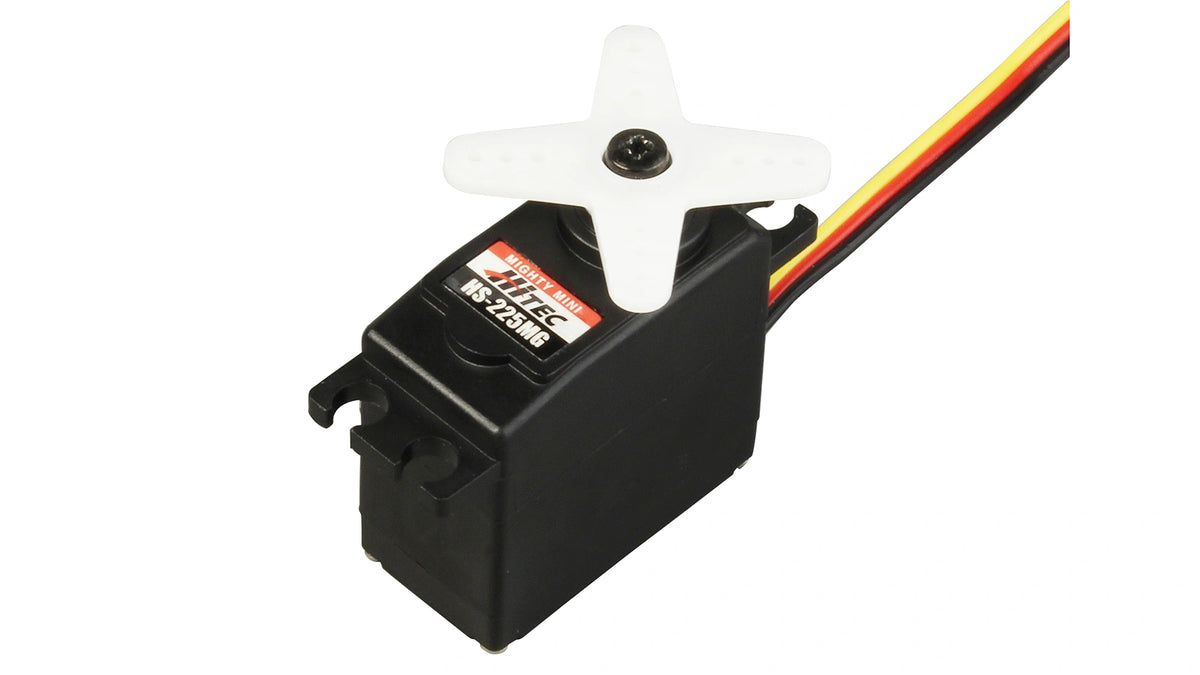

Servo HS-225MG
Servo HS-225MG
Servo HS-225MG
Servo HS-225MG

Servo HS-225MG

4,8-6 V | max. 47,1 N/cm | max. 0,13 Sec/60° | IP4X

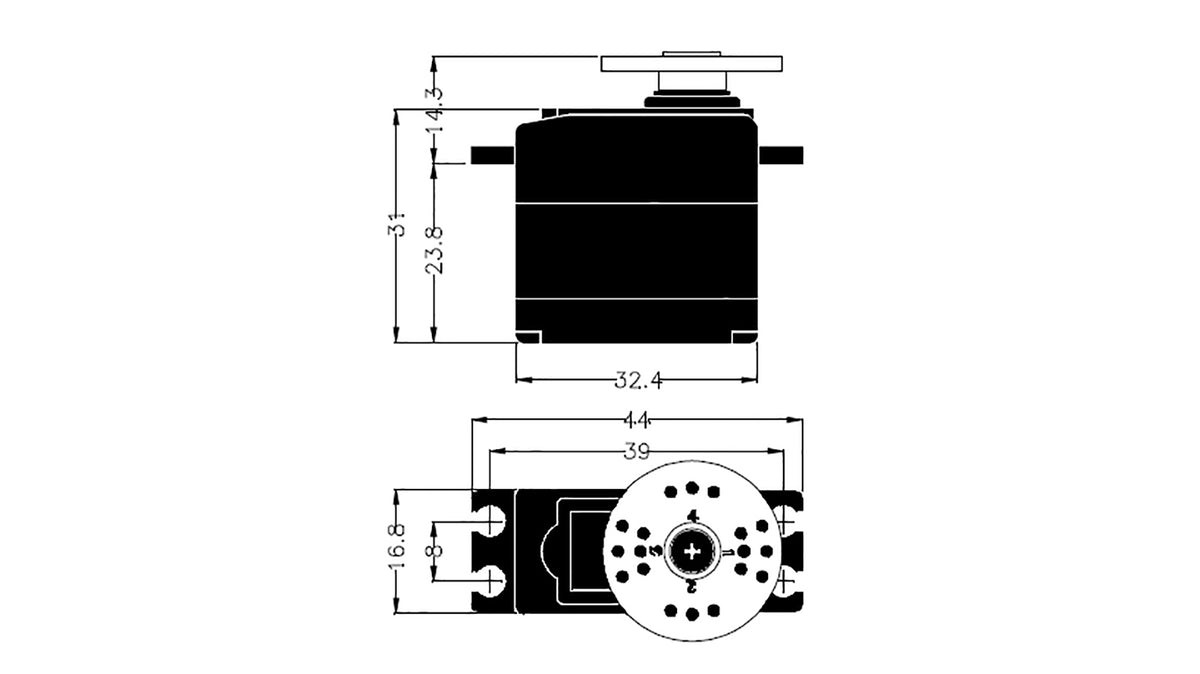

PWM | LWH 32,2 x 16,8 x 31 mm | 31 g
  • 1x HiTEC Servo HS-225MG, Servo arm set (R-O, R-X, R-I, R-D, R-C, R-XA), Mounting hardware
  • 112226
  • In stock, ready to ship
Price
Regular price €33,30
Regular price Sale price €33,30
Save €-33,30
/
inkl. MwSt.
Shipping calculated at checkout.

Fast response, crisp centering, and straightforward integration define this HiTEC servo motor. The HS-225MG runs as an analog servo via the proven PWM interface, while a potentiometer delivers precise position feedback. Its brushed, iron-core motor achieves 0.13 s per 60° at 6.0 V and provides 43 N·cm of torque. A metal geartrain with a ball bearing transfers power smoothly and reliably, even during frequent cycles. In a compact form factor, it combines short transit times, quiet operation, and high positional fidelity.
Delivery times

Delivery will be made on the next working day or after receipt of payment.
According to experience, delivery times are:

  • Germany: 2-3 working days
  • European Union: 5-8 working days
  • United Kingdom 5-8 working days
  • Switzerland 8-12 working days
  • Ukraine/Iceland/Faröere 8-12 working days
Should you require any further information, please contact us.

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

Technical Download

  • 3D CAD model servo hs-225mg.stp Download
