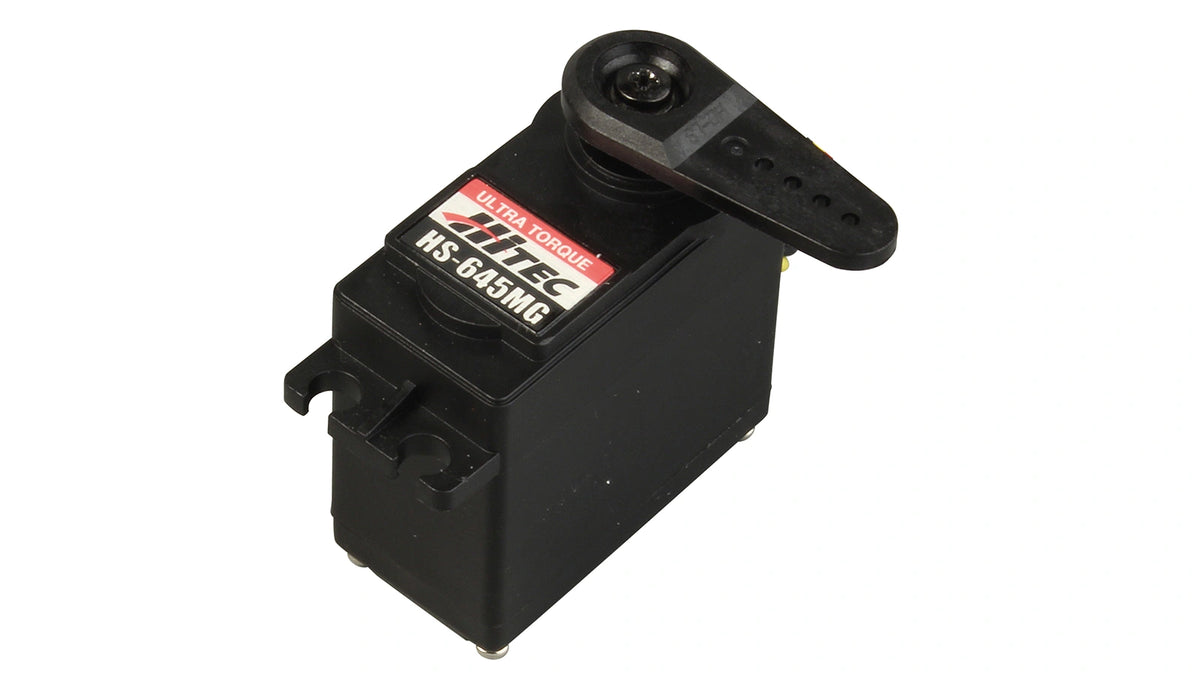

Servo HS-645MG
Servo HS-645MG
Servo HS-645MG
Servo HS-645MG

Servo HS-645MG

4,8-6 V | max. 94,1 N/cm | max. 0,2 Sec/60° | IP4X

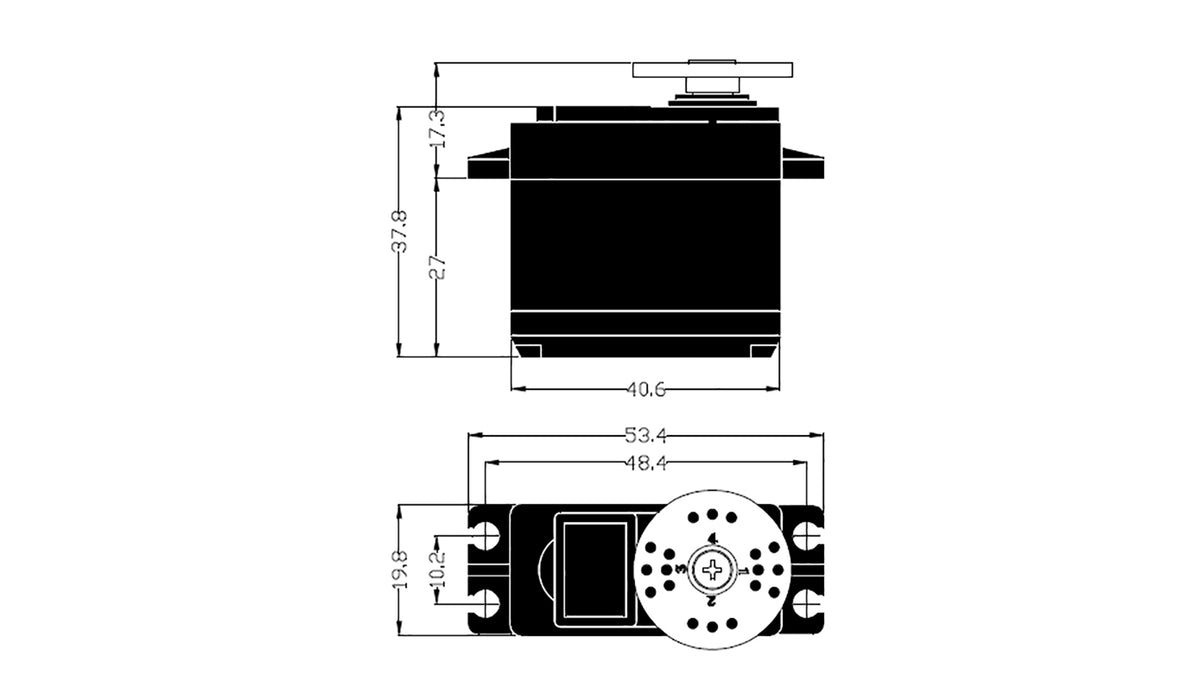

PWM | LWH 40,8 x 20 x 37,8 mm | 55,2 g
  • 1x HiTEC Servo HS-645MG, Servo arm set (R-O, R-XA, HD-IS, HD-LS, HD-OS), Mounting hardware
  • 112645
  • In stock, ready to ship
Price
Regular price €40,70
Regular price Sale price €40,70
Save €-40,70
/
inkl. MwSt.
Shipping calculated at checkout.

The HiTEC HS-645MG servo delivers clear feedback and robust mechanics for reliable actuation. It operates as an analog unit via the proven PWM interface, while a potentiometer supports crisp centering and precise positioning. Its brushed, iron-core motor achieves 0.2 s per 60° at 6.0 V and provides 94 N·cm of torque. The metal geartrain with a ball bearing runs smoothly and transfers power durably. The result is a compact servo that combines direct control, stable positional accuracy, and rugged geartrain design.
Delivery times

Delivery will be made on the next working day or after receipt of payment.
According to experience, delivery times are:

  • Germany: 2-3 working days
  • European Union: 5-8 working days
  • United Kingdom 5-8 working days
  • Switzerland 8-12 working days
  • Ukraine/Iceland/Faröere 8-12 working days
Should you require any further information, please contact us.

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

Technical Download

  • 3D CAD model servo hs-645mg.stp Download
