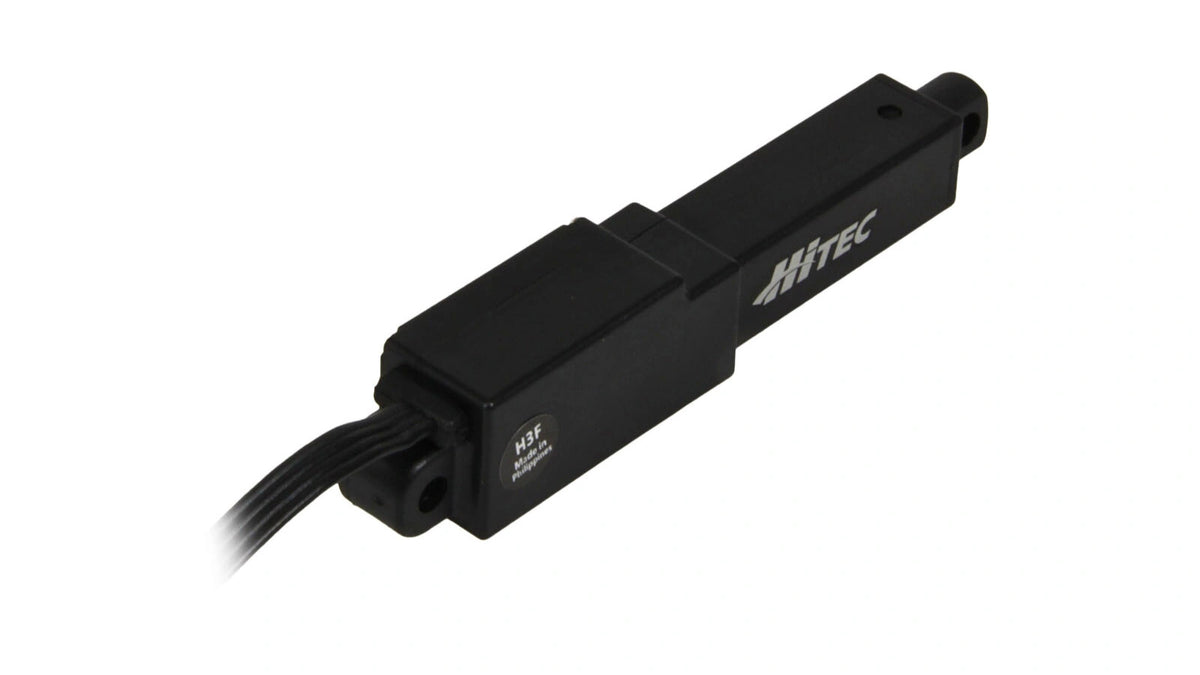

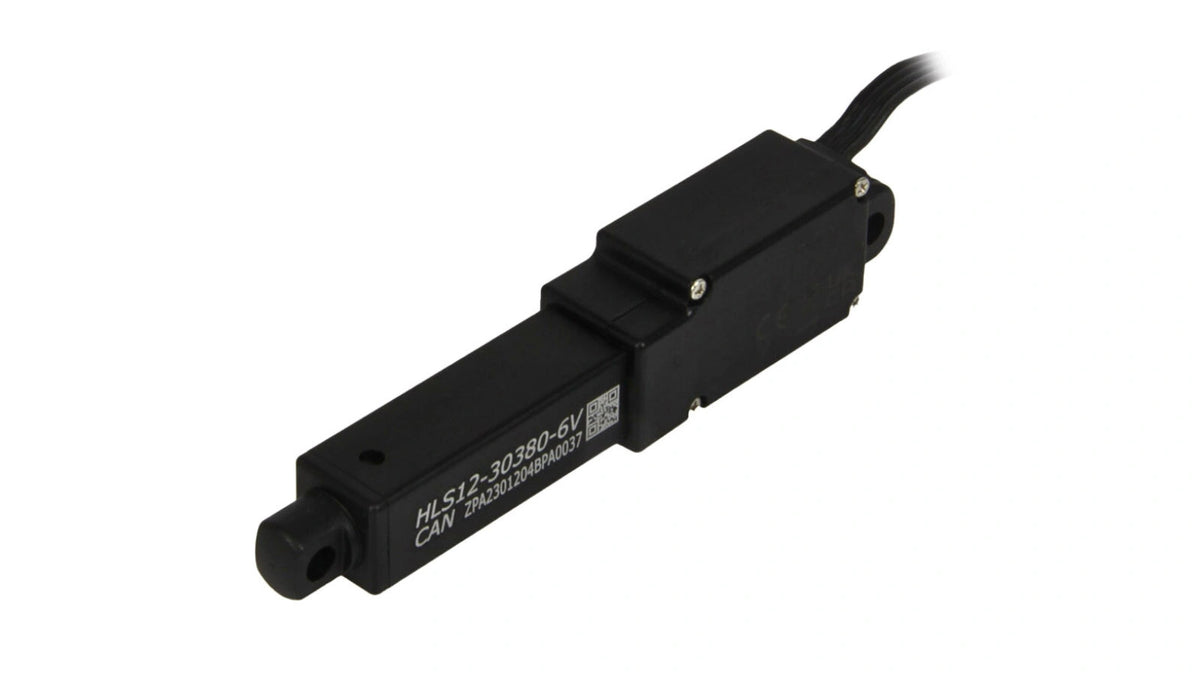

Linear Actuator HLS12-CAN-30380

Up to 217.71 N (48.96 lbf) of thrust in a compact footprint: the HiTEC linear actuator HLS12-CAN-30380 delivers controlled, repeatable motion. It connects directly to your network via CAN 2.0A and CAN 2.0B. A brushed motor with a metal core drives a durable metal gear train, transmitting power cleanly across the 30 mm (1.18 in) stroke. The 380:1 gear ratio provides finely metered feeds at 4.1 mm/s (0.16 in/s), ideal for load-intensive positioning where space is limited. Programmability adds extra flexibility, while the 4.0–8.4 V operating range simplifies power planning. The result is a space-saving actuator that combines strong reserves, precise travel, and reliable communication for demanding positioning tasks.
