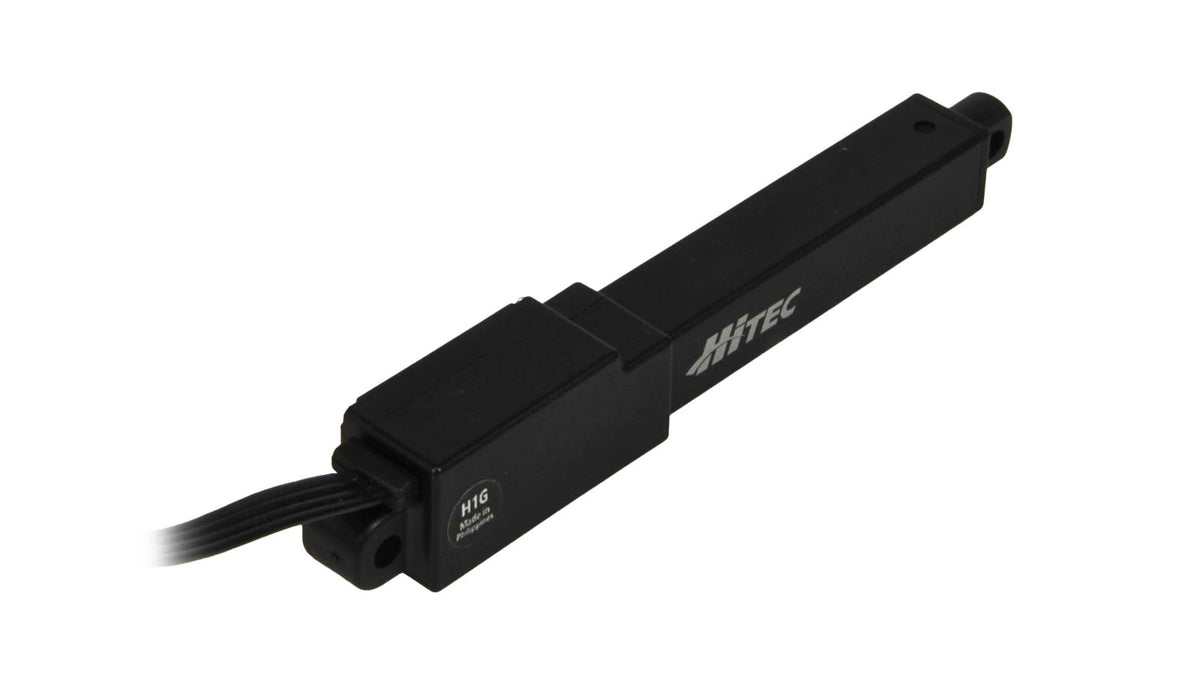

Linear Actuator HLS12-CAN-50210

The HiTEC linear actuator HLS12-CAN-50210 pairs a compact footprint with precise, networked motion via CAN 2.0A and CAN 2.0B. A brushed motor with a metal core drives a robust metal gear train, transferring power cleanly across the 50 mm (1.97 in) stroke. Programmability adds extra flexibility. With a 210:1 gear ratio, it delivers even feeds at 7.5 mm/s (0.30 in/s) while providing up to 121.60 N (27.34 lbf) of thrust. The 4.0–8.4 V operating range simplifies power planning. This linear actuator offers repeatable positioning, controlled dynamics, and reliable communication in a space-saving design for precise travel.
