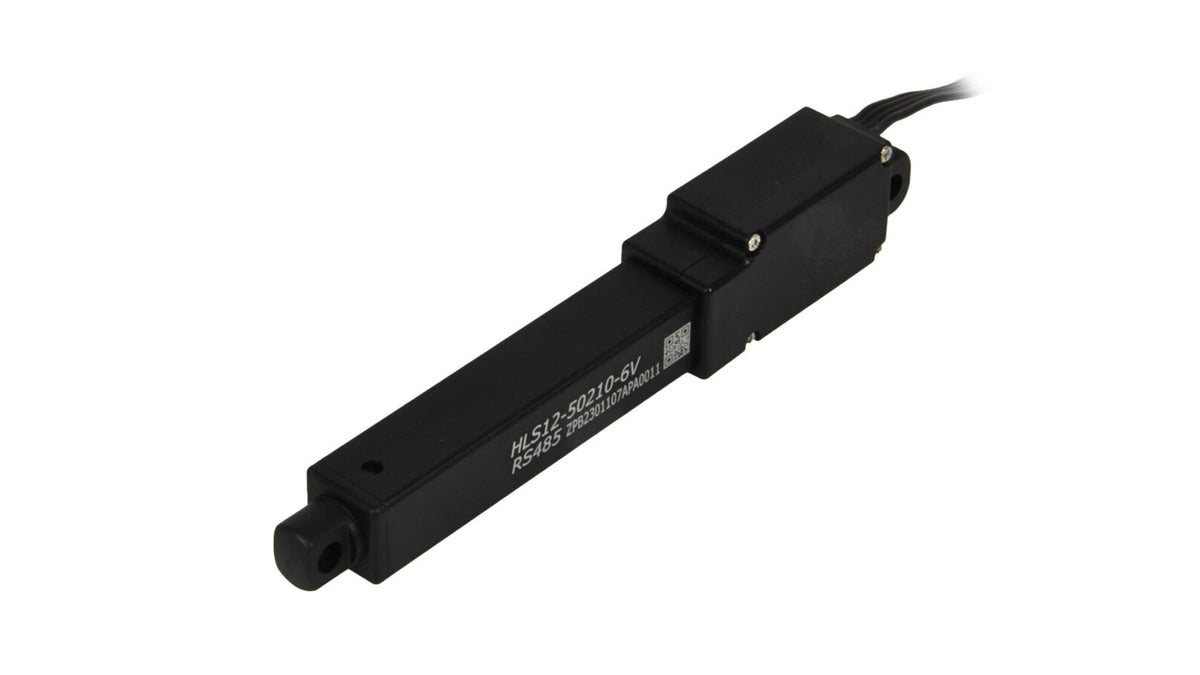

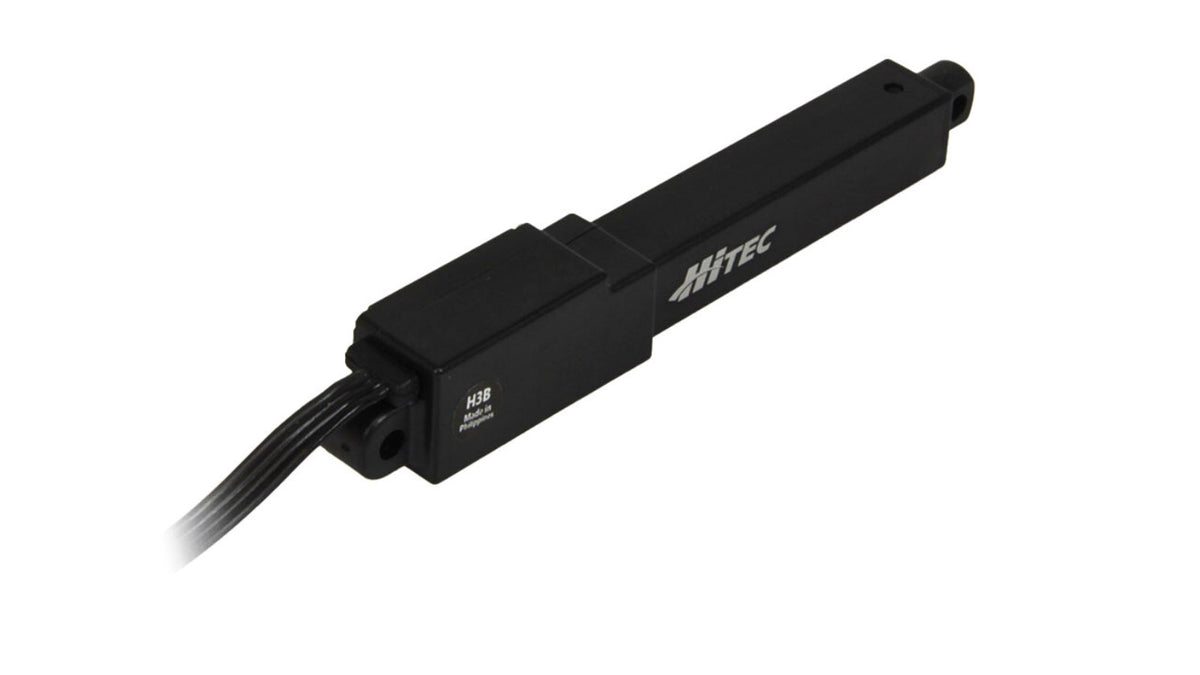

Linear Actuator HLS12-RS485-50210

The HiTEC linear actuator HLS12-RS485-50210 executes controlled linear motion and communicates clearly over RS-485. A brushed motor with a metal core drives a robust metal gear train, transmitting power cleanly across the 50 mm (1.97 in) stroke. The 210:1 gear ratio delivers steady 7.5 mm/s (0.30 in/s) at 7.4 V while providing up to 121.60 N (27.34 lbf) of thrust. Programmability adds flexibility, and the 4.0–8.4 V operating range simplifies power planning. With this linear actuator, you achieve repeatable positioning in a compact footprint.
