Servo D131MW

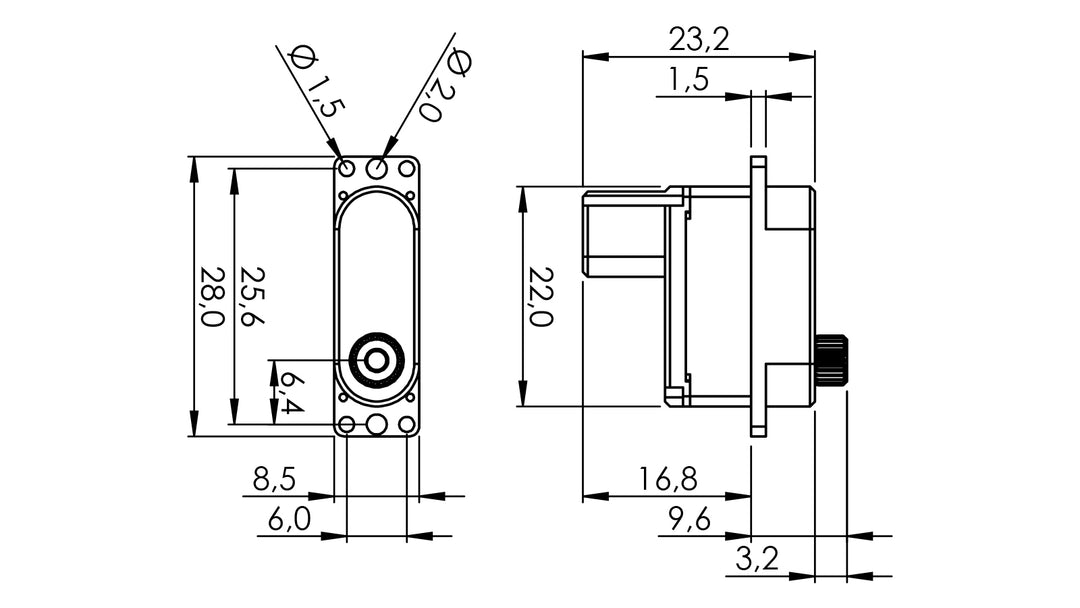

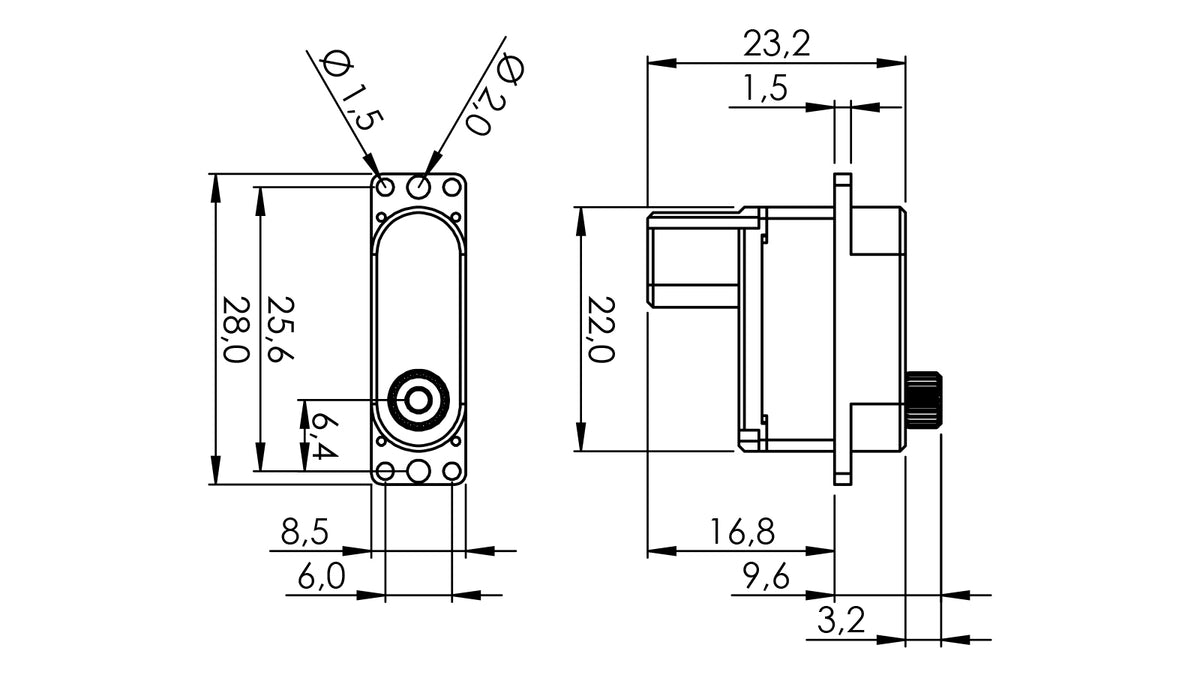

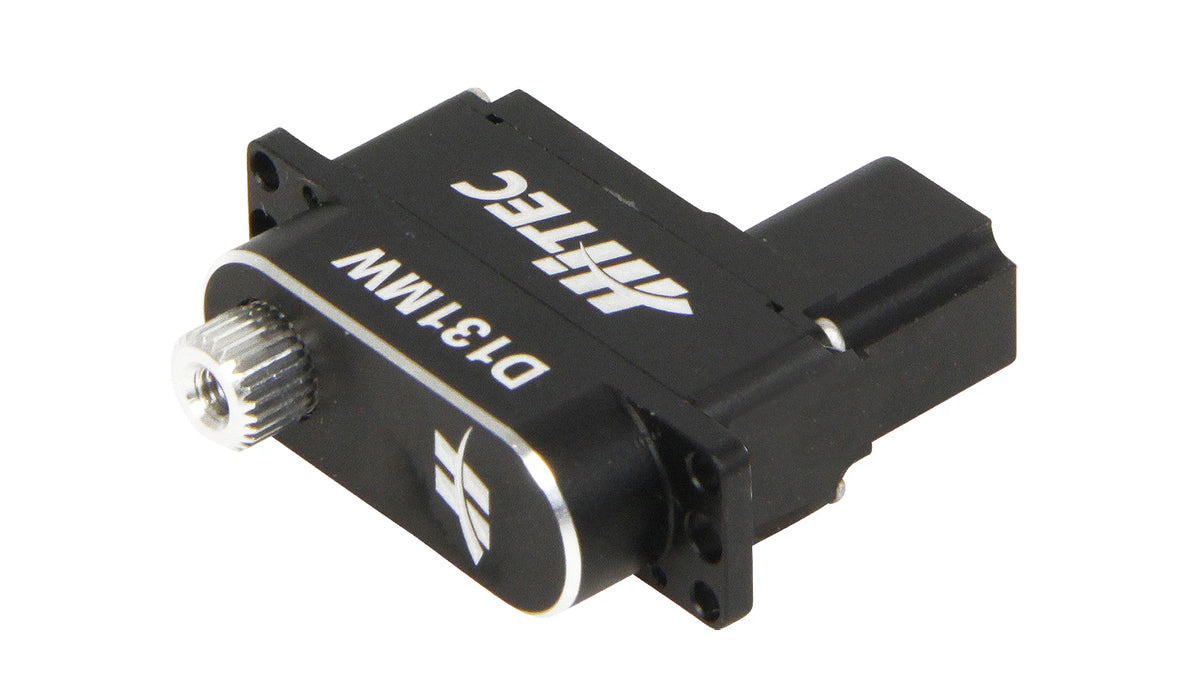

This HiTEC digital servo delivers precise motion in very tight spaces. The D131MW pairs a smooth coreless motor with a wide 4.8–7.4 V operating range for stable performance across varied power rails. Control is straightforward via PWM or TTL, making integration into controllers and embedded systems fast and reliable. With IP4X dust ingress protection, the housing suits technical environments where fine particles are present. Its compact footprint - 22.0 × 8.5 × 23.2 mm (L×W×H) or 0.87 × 0.33 × 0.91 in - simplifies mechanical planning and enables clean layouts even in dense assemblies. The coreless drive yields crisp response and fine positioning, ideal when the servo also acts as an actuator in precise adjustment tasks. In short, it combines compact size, digital control quality, and integration-friendly interfaces for professional applications.
