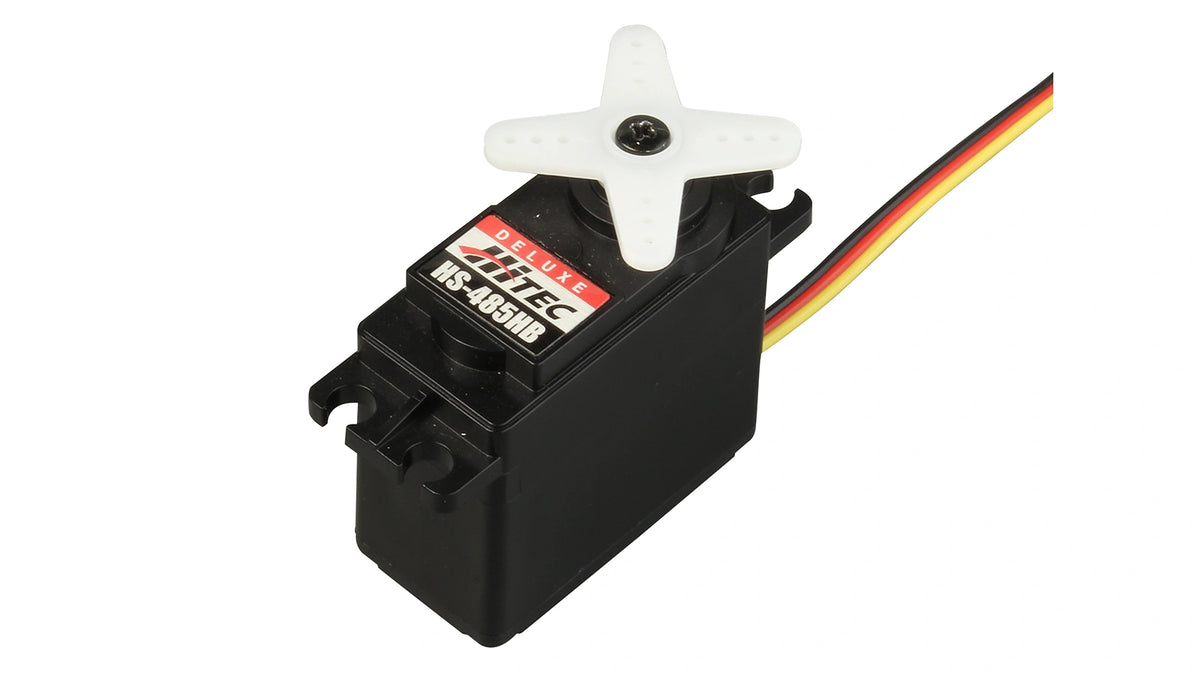

Servo HS-485HB

This HiTEC servo motor delivers clear feedback and straightforward control. The HS-485HB runs as an analog servo via the proven PWM interface, with a potentiometer capturing position accurately to support crisp centering. Its brushed, iron-core motor translates commands directly and, at 6.0 V, achieves 0.18 s per 60° with 58 N·cm of torque. The Karbonite® geartrain with a ball bearing provides high wear resistance and smooth power transfer, maintaining consistent repeatability over time. Overall, the actuator offers a compact solution with dependable positional accuracy, smooth operation, and easy driveability.
