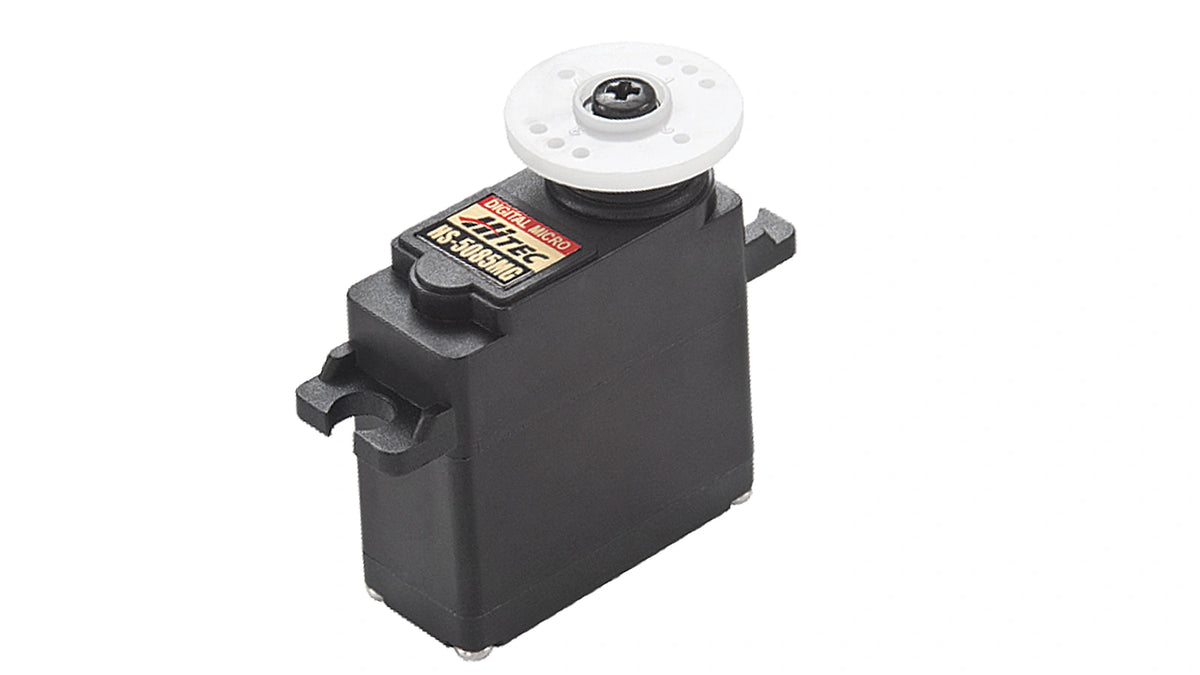

Servo HS-5085MG

The HiTEC HS-5085MG is a compact digital servo motor for precise angular motion. A brushed motor with a metal core provides fine response, and the metal gear train transmits movement smoothly and consistently. Traditional PWM control is supported, and the 3.5–8.4 V range offers a wide supply window. At 6 V the actuator delivers 42 N·cm (59.5 oz-in) and achieves 0.13 s across 60°, enabling quick, well-controlled positioning. The HS-5085MG combines dependable positioning with balanced dynamics in applications where space is limited and repeated, accurate movements are required.
