Servo HS-65MG
Servo HS-65MG
Servo HS-65MG
Servo HS-65MG

Servo HS-65MG

4,8-6 V | max. 21,6 N/cm | max. 0,11 Sec/60° | IP4X

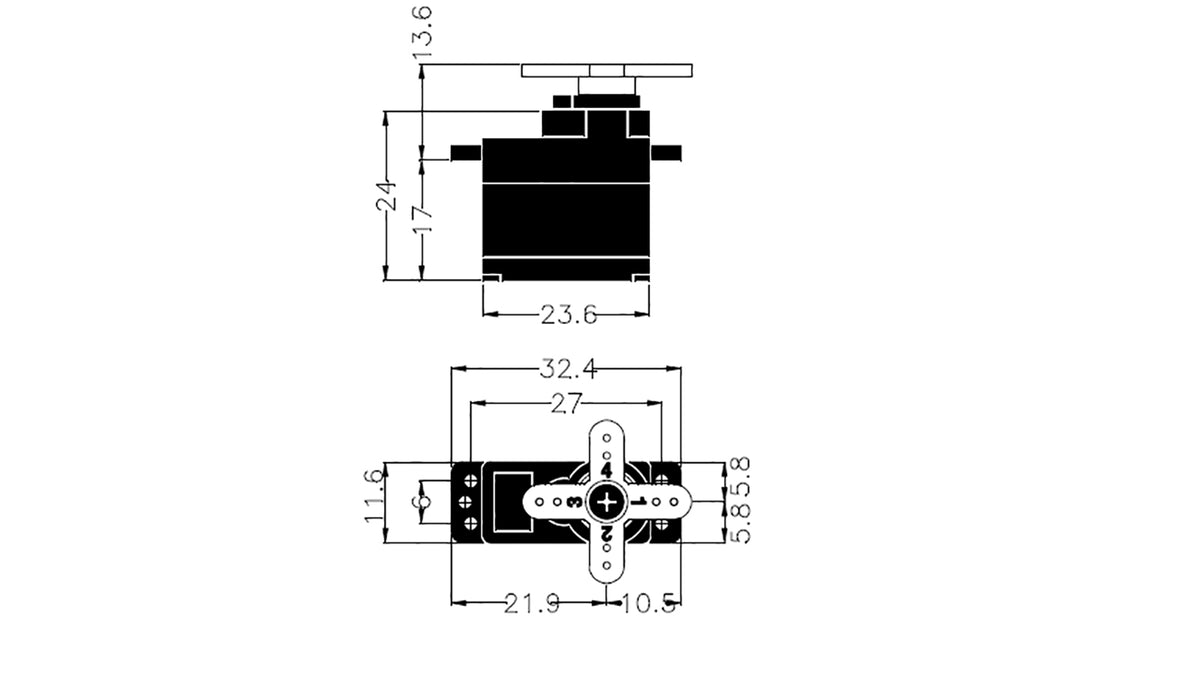

PWM | LWH 23,6 x 11,6 x 20 mm | 12,5 g
  • 1x HiTEC Servo HS-65MG, Servo arm set (MS-I25, MS-L25, MS-X25), Mounting hardware
  • 112066
  • In stock, ready to ship
Price
Regular price €33,30
Regular price Sale price €33,30
Save €-33,30
/
inkl. MwSt.
Shipping calculated at checkout.

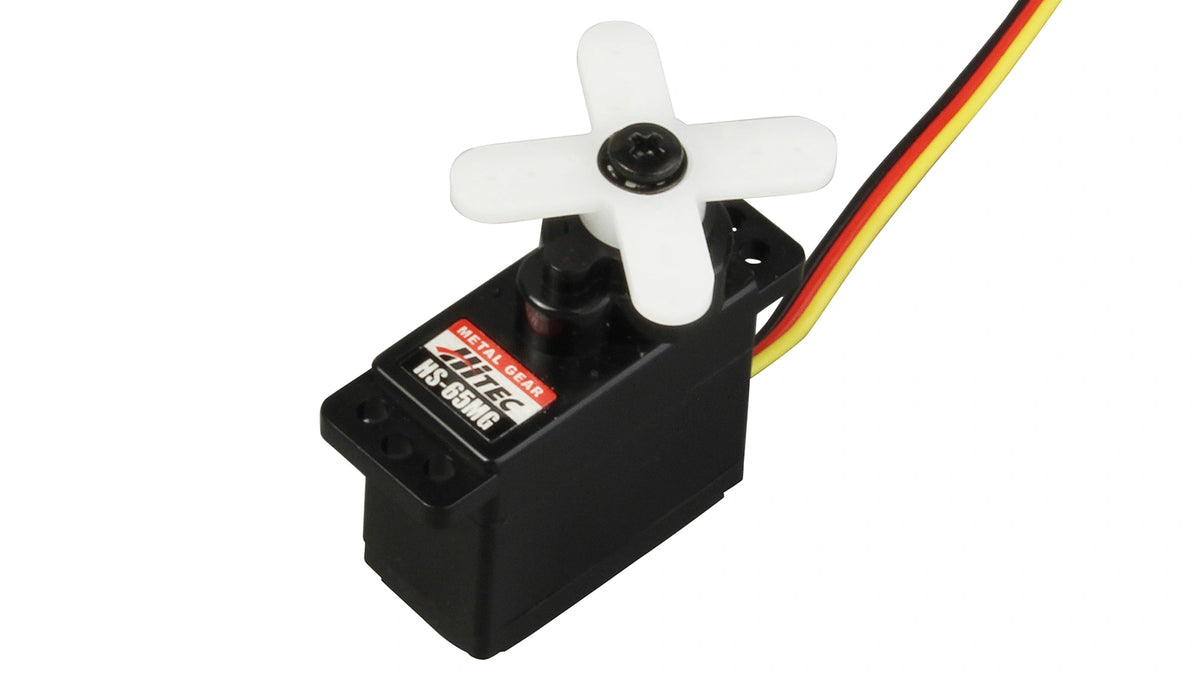

The HiTEC HS-65MG servo combines quick response with robust mechanics. It operates as an analog unit via the proven PWM interface, while a potentiometer provides clear position feedback for crisp centering. Its brushed, iron-core motor reaches 0.11 s per 60° at 6.0 V and delivers 21 N·cm of torque, so movements are executed quickly and in a controlled manner. The metal geartrain with a ball bearing supports smooth running and reliable power transfer. The result is a compact actuator with direct control and consistent repeatability.
Delivery times

Delivery will be made on the next working day or after receipt of payment.
According to experience, delivery times are:

  • Germany: 2-3 working days
  • European Union: 5-8 working days
  • United Kingdom 5-8 working days
  • Switzerland 8-12 working days
  • Ukraine/Iceland/Faröere 8-12 working days
Should you require any further information, please contact us.

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

Technical Download

  • 3D CAD model servo HS-65MG.stp Download
