Servo HS-785HB
Servo HS-785HB
Servo HS-785HB
Servo HS-785HB

Servo HS-785HB

4,8-6 V | max. 129,4 N/cm | max. 1,38 Sec/60° | IP54
PWM | LWH 59 x 29 x 50 mm | 110 g
  • 1x HiTEC Servo HS-785HB, 1x Servo lever - spool drum, Mounting hardware
  • 112785
  • In stock, ready to ship
Price
Regular price €52,70
Regular price Sale price €52,70
Save €-52,70
/
inkl. MwSt.
Shipping calculated at checkout.

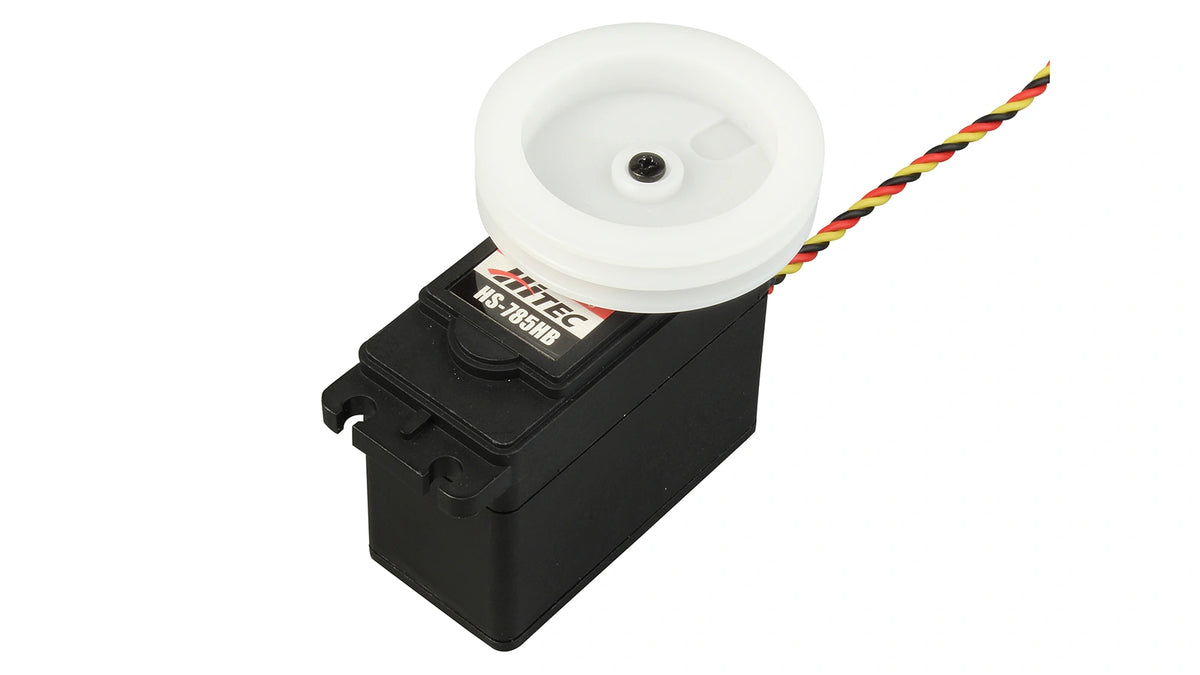

As a winch servo with spool drum, the HiTEC HS-785HB is designed for multi-turn motion and operates as an analog unit with a standard setting of ±2.625 revolutions. It is driven via the proven PWM interface with a pulse width of 900 to 2100 µs and is non-programmable. Its brushed, iron-core motor achieves 1.38 s per 360° at 6.0 V and delivers 129 N·cm of torque. The Karbonite® geartrain with a ball bearing supports smooth, stable power transfer across the full adjustment range. With an IP54 rating, the actuator is protected against dust and splashing water.
Delivery times

Delivery will be made on the next working day or after receipt of payment.
According to experience, delivery times are:

  • Germany: 2-3 working days
  • European Union: 5-8 working days
  • United Kingdom 5-8 working days
  • Switzerland 8-12 working days
  • Ukraine/Iceland/Faröere 8-12 working days
Should you require any further information, please contact us.

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

Technical Download

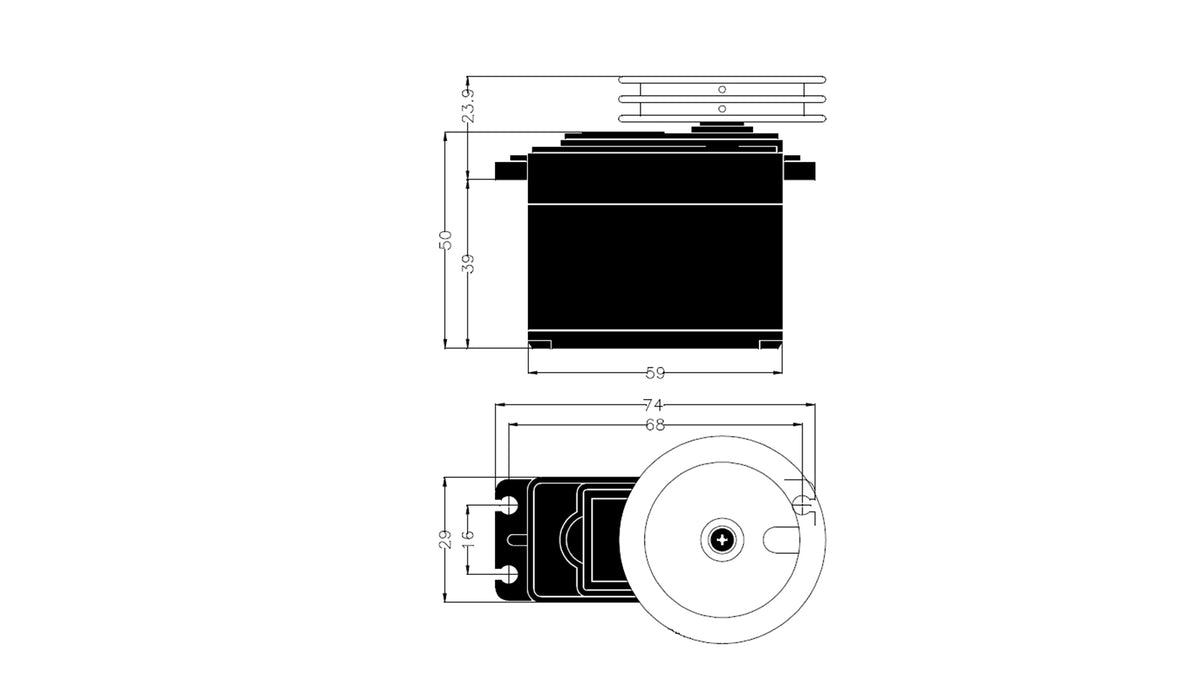

  • 3D CAD model servo hs-785hb.stp Download
