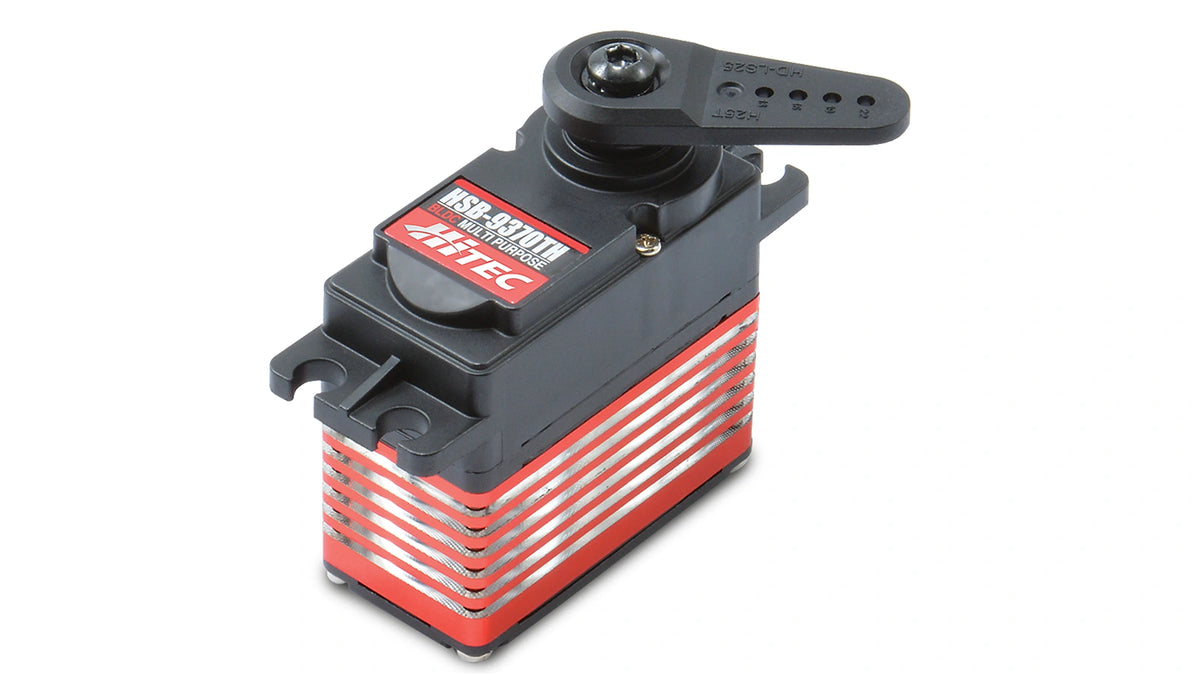

Servo HSB-9370TH (with PAD)

Responsive and built for demanding duties, the HiTEC servo motor HSB-9370TH drives dynamic motion in industrial settings. At 7.4 V it reaches 0.10 s for 60° and delivers 245 N cm of torque, enabling fast, decisive moves with precise stops. The efficient brushless DC motor (BLDC) provides high dynamic response with smooth running, while the analog potentiometer supplies sensitive position feedback for repeatable accuracy. A proven PWM interface and a programmable feature set let engineers tailor behavior to control strategies and motion profiles. The wide 4–8.4 V supply range eases power design and supports performance scaling. The titanium gear train operates with low wear, keeps backlash consistently low, and transfers power precisely to the actuator. Rated IP54, the drive resists harmful dust and splashing water, maintaining stable performance in rugged environments.

PAD
If you use a battery backer or the BEC output of your speed controller (ESC), simply plug the included PAD (Power Absorbing Device) in parallel with the servo. This prevents reverse current when using non-compatible ENERGY EFFICIENT connections. As a result, the servos behave like any other standard servo.
For further details, please refer to the user manual.
