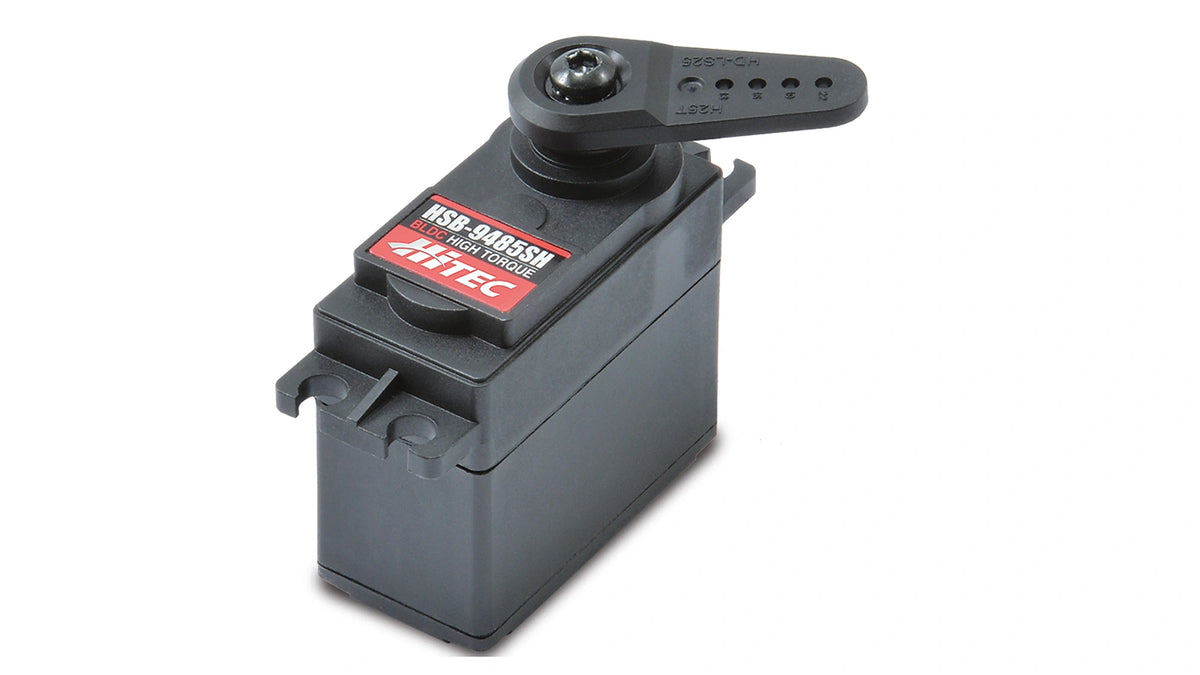

Servo HSB-9485SH (with PAD)

Confident power with clear feedback: The HiTEC servo motor HSB-9485SH executes commands via a proven PWM interface with precise control, driving the actuator dynamically and with repeatable accuracy. An analog potentiometer provides sensitive position data, while the efficient brushless DC motor (BLDC) delivers strong launch dynamics with smooth running. The 4–8.4 V supply range simplifies system design and preserves performance headroom. At 7.4 V, the digital servo reaches 0.15 s for 60° and delivers 254 N cm of torque, ideal for forceful motion profiles with defined stops. The robust steel gear train transfers power reliably over the long term and keeps backlash low. Rated IP54, it remains functional in the presence of harmful dust and splashing water, enabling consistently precise operation in demanding environments.

PAD
If you use a battery backer or a BEC voltage from your speed controller, the PAD (Power Absorbing Device) included with each servo can simply be plugged in parallel to the servo. This prevents the backflow of electricity in the case of incompatible ENERGY EFFICIENT connections. This makes the servos behave like any other known servo.
For more details, see the user manual.
