Servo HSR-1425CR
Servo HSR-1425CR
Servo HSR-1425CR
Servo HSR-1425CR

Servo HSR-1425CR

3,5-8,4 V | max. 27,5 N/cm | max. 0,12 Sec/60° | IP4X

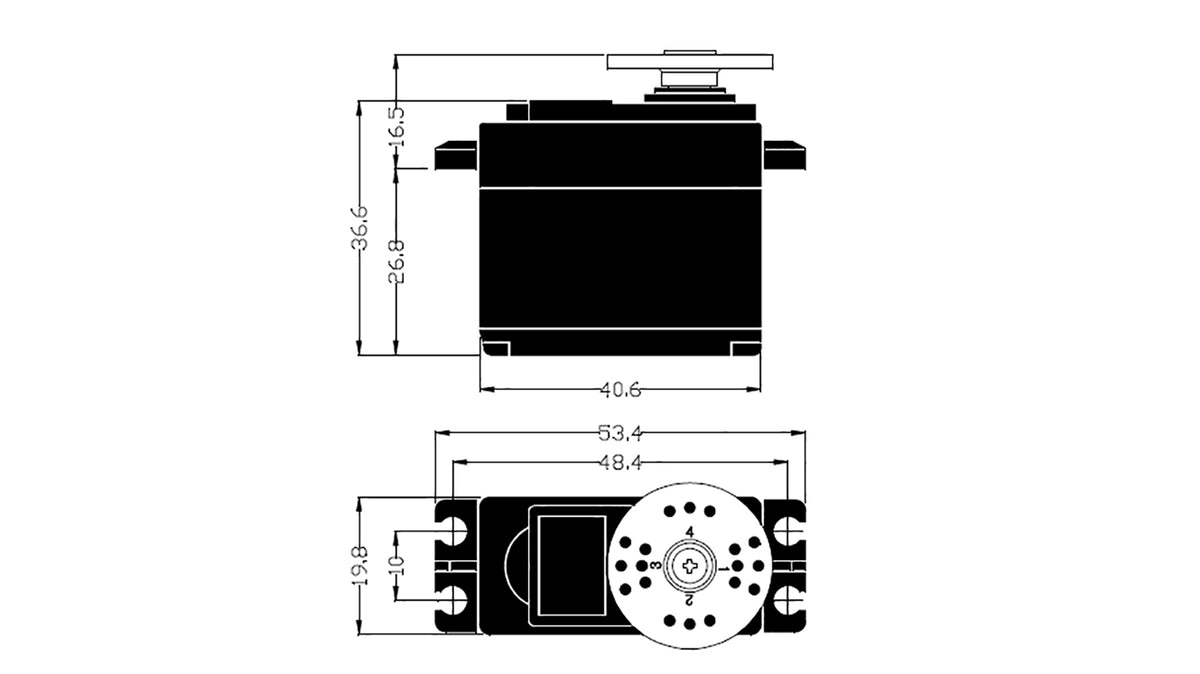

PWM | LWH 40,6 x 19,8 x 36,6 mm | 41,7 g
  • 1x HiTEC Servo HSR-1425CR, 1x Servo arm (R-O), Mounting hardware
  • 138114
  • In stock, ready to ship
Price
Regular price €22,20
Regular price Sale price €22,20
Save €-22,20
/
inkl. MwSt.
Shipping calculated at checkout.

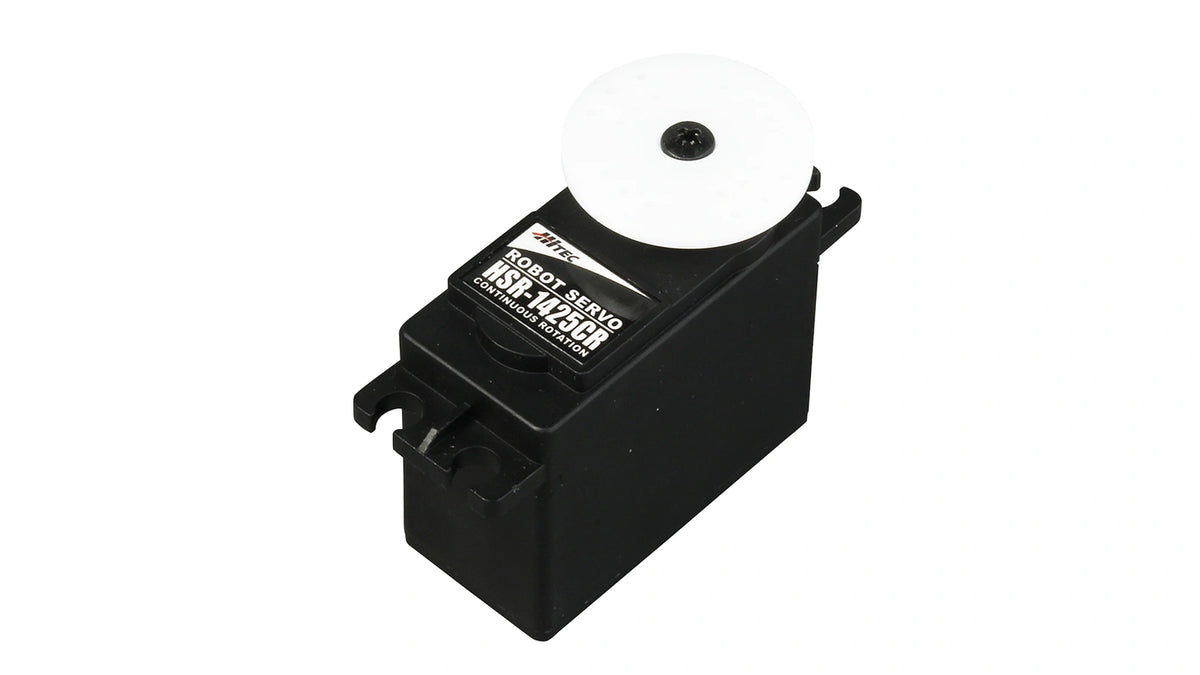

The HiTEC HSR-1425CR is a continuous rotation servo designed for steady rotational motion and straightforward control via the proven PWM interface. It operates as an analog unit and uses a brushed, iron-core motor. A wide 3.5–8.4 V operating range provides plenty of flexibility on the power side. At 4.8 V, the servo delivers 27 N·cm of torque and reaches an operating speed of 43.4 rpm. A ball bearing supports smooth running and stable guidance of the output shaft. This actuator combines continuous rotation, robust bearing support, and clearly defined performance in a compact servo.
Delivery times

Delivery will be made on the next working day or after receipt of payment.
According to experience, delivery times are:

  • Germany: 2-3 working days
  • European Union: 5-8 working days
  • United Kingdom 5-8 working days
  • Switzerland 8-12 working days
  • Ukraine/Iceland/Faröere 8-12 working days
Should you require any further information, please contact us.

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

Technical Download

  • 3D CAD model servo HSR-1425CR.stp Download
