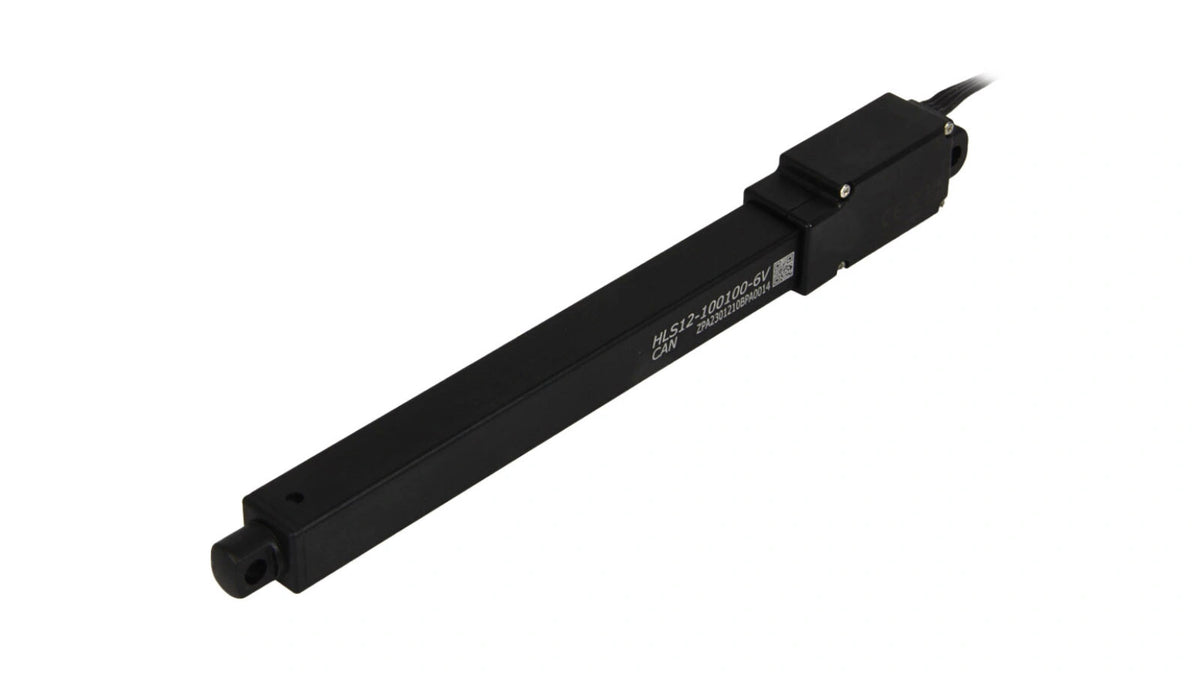

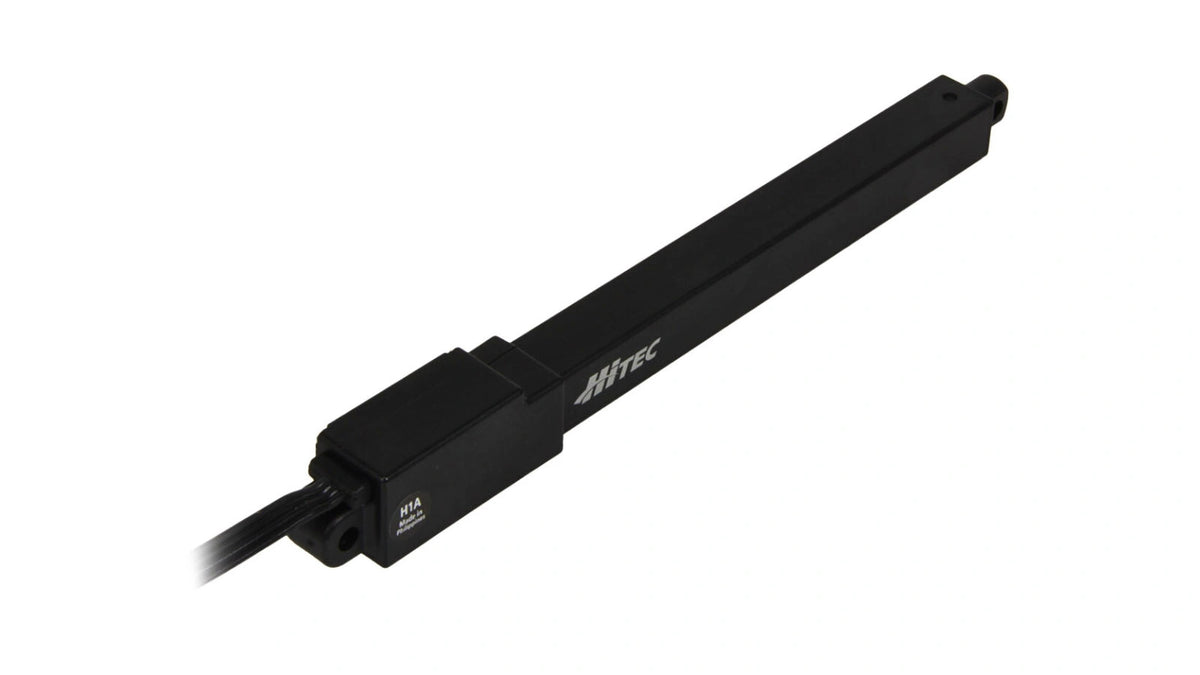

Linear Actuator HLS12-CAN-100100

The HiTEC Linear Servo HLS12-CAN-100100 delivers precise linear motion in a compact footprint and connects directly to existing networks via CAN 2.0A and CAN 2.0B. A brushed motor with a metal core works with a robust metal gear train to transmit power smoothly across the 100 mm (3.94 in) stroke. Programmability adds extra flexibility. With a 100:1 gear ratio, it achieves even, controlled feeds at 16.1 mm/s (0.63 in/s) while providing up to 60.80 N (13.67 lbf) of thrust. The 4.0–8.4 V operating range eases power planning and supports stable performance. As a linear actuator, this drive combines reliable communication, repeatable positioning, and a space-saving design, ideal wherever clear signaling, precise travel, and straightforward integration into a CAN network are required.
