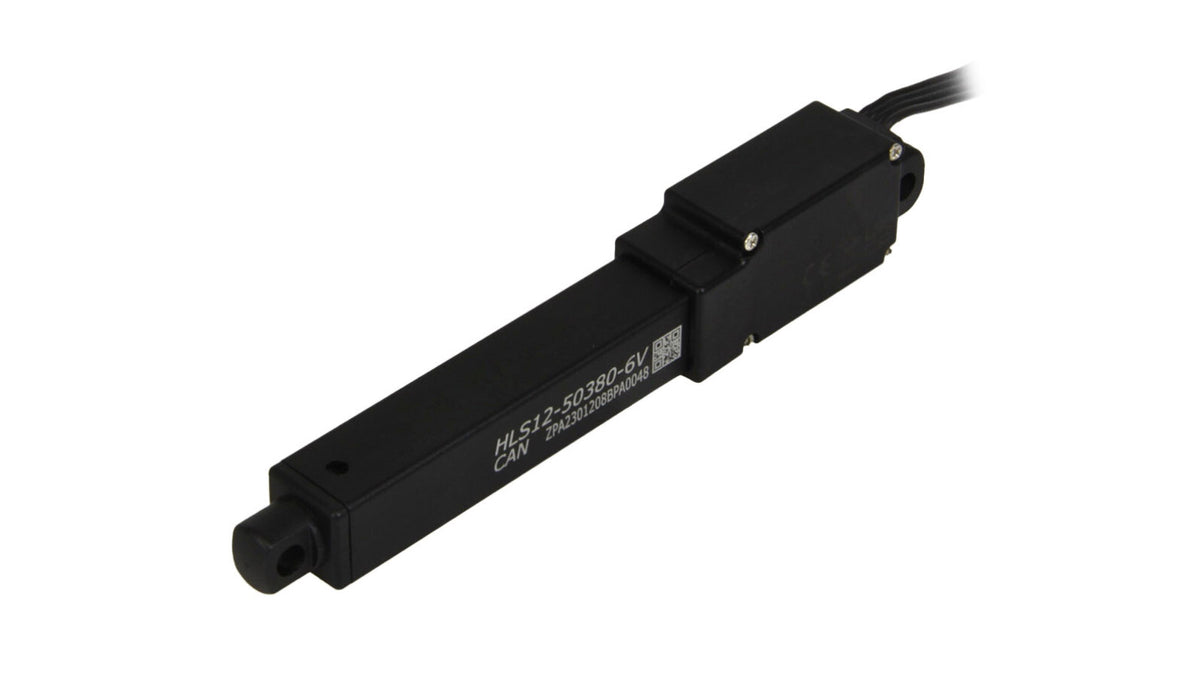

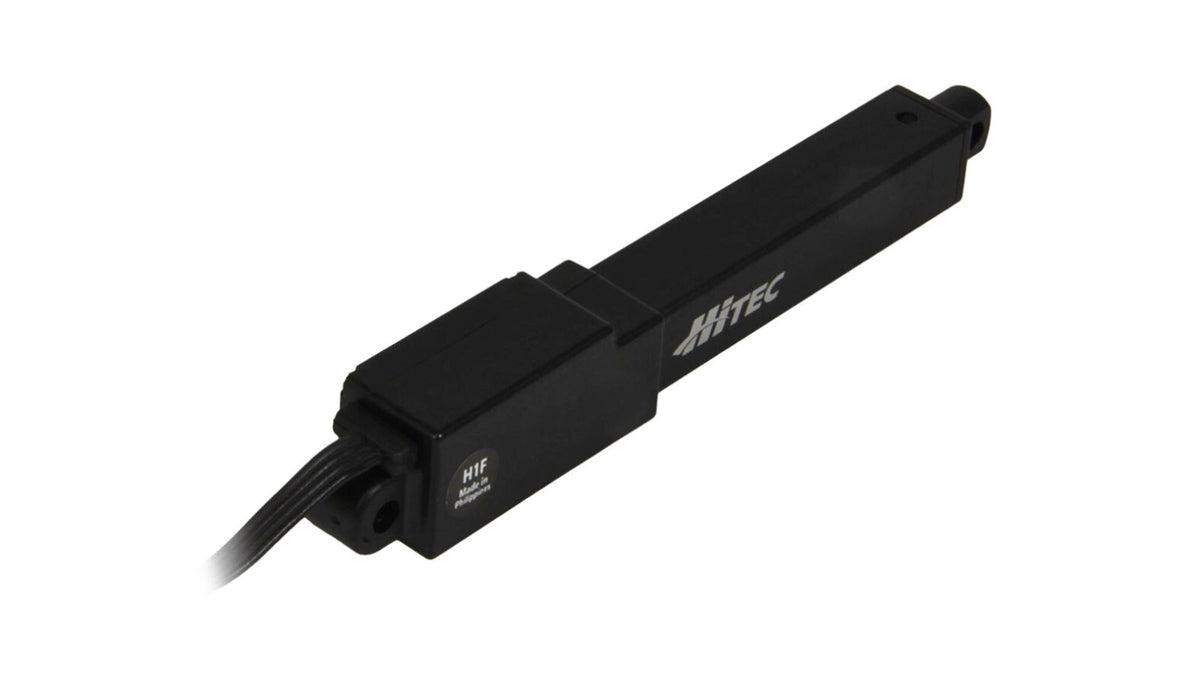

Linear Actuator HLS12-CAN-50380

The HiTEC linear actuator HLS12-CAN-50380 combines a compact footprint with clear CAN 2.0A/B communication and high thrust. A brushed motor with a metal core drives a robust metal gear train, transmitting power precisely across the 50 mm (1.97 in) stroke. The 380:1 gear ratio delivers finely metered feeds at 4.1 mm/s (0.16 in/s), while up to 217.71 N (48.95 lbf) of thrust enables confident positioning under load. Programmability adds flexibility, and the 4.0–8.4 V operating range simplifies power planning. The result is a space-saving linear actuator that brings repeatable positioning, controlled dynamics, and reliable network connectivity together for precise travel.
