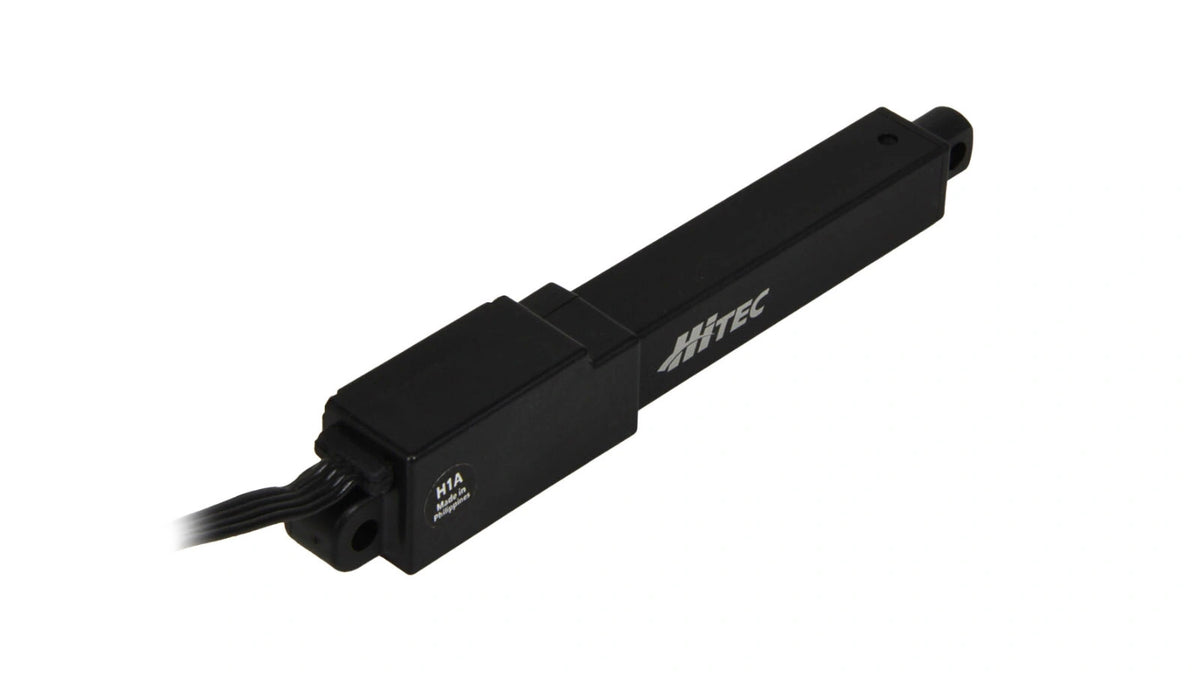

Linear Actuator HLS12-CAN-50100

The HiTEC linear actuator HLS12-CAN-50100 delivers precise motion in a compact footprint and connects cleanly to your network via CAN 2.0A and CAN 2.0B. A brushed motor with a metal core drives a robust metal gear train, transmitting power smoothly across the 50 mm (1.97 in) stroke. Programmability adds flexibility without complicating control. With a 100:1 gear ratio, it provides even feeds at 16.1 mm/s (0.63 in/s) and up to 60.80 N (13.67 lbf) of thrust. The 4.0–8.4 V operating range simplifies power planning. This linear actuator combines repeatable positioning, reliable communication, and a space-saving design.
