Servo HSR-M9382TH
Servo HSR-M9382TH
Servo HSR-M9382TH
Servo HSR-M9382TH

Servo HSR-M9382TH

4-8,4 V | max. 333,43 N/cm | max. 0,14 Sec/60° | IP54

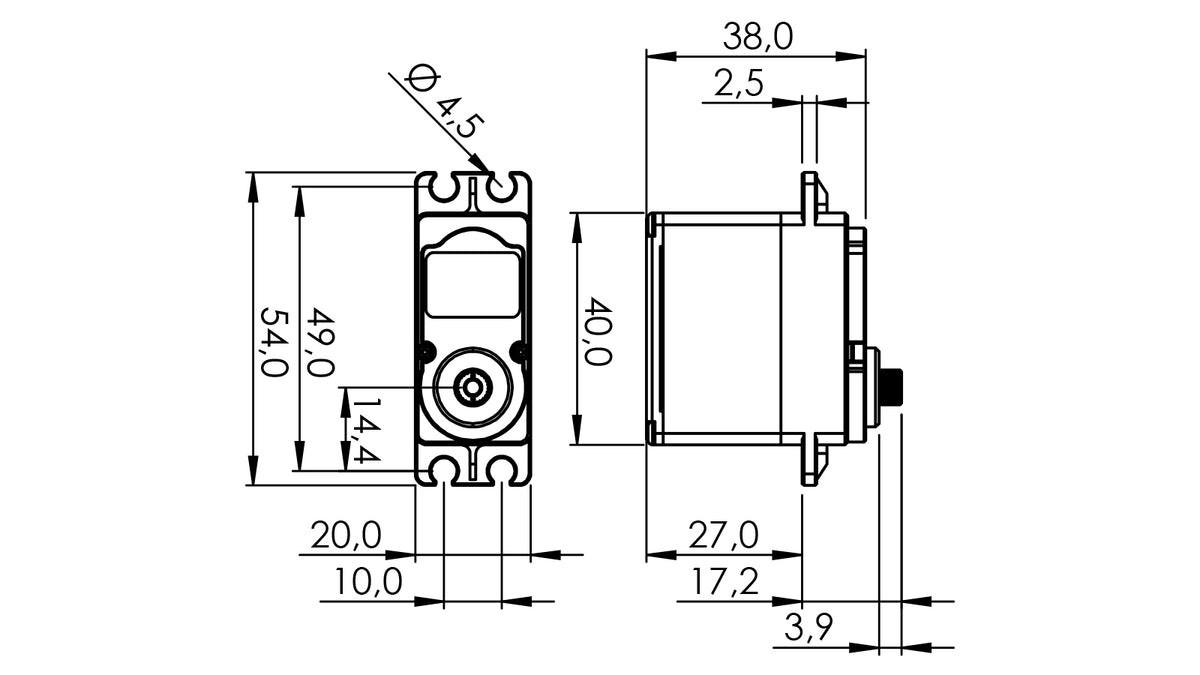

PWM | LWH 40 x 20 x 38 mm | 72 g
  • 1x HiTEC Servo HSR-M9382TH, Servo arm set (HD-LS, R-ML25), Mounting hardware
  • 1-01251
  • In stock, ready to ship
Price
Regular price €231,10
Regular price Sale price €231,10
Save €-231,10
/
inkl. MwSt.
Shipping calculated at checkout.

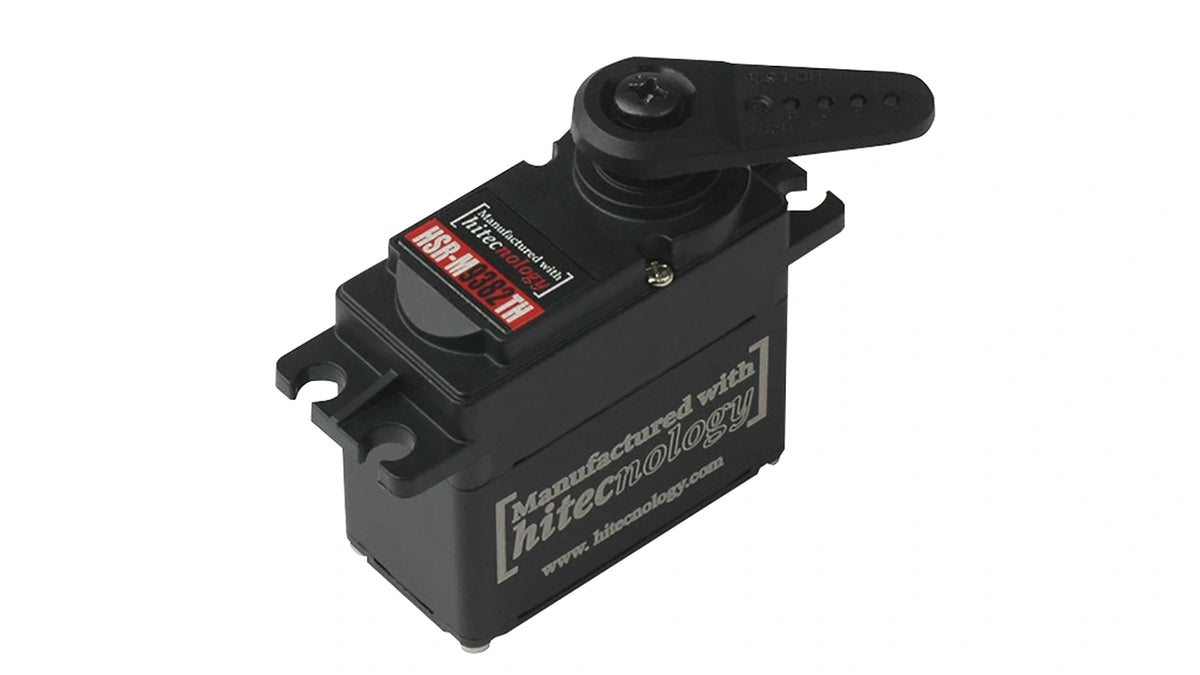

The HiTEC digital servo motor builds on a brushless DC drive and a magnetic encoder to deliver precise positioning and quick response. The HiTEC servo HSR-M9382TH transmits power through a titanium gear train and is programmable, for example the rotation angle, for precise, task-specific tuning. At 7.4 V the actuator achieves 0.14 s/60° and 333 N·cm (471.6 oz·in) of torque, enabling dynamic accelerations with stable endpoints. The 4.0–8.4 V range provides sensible design headroom, while IP54 guards against dust and splashing water. Control is via PWM, ensuring straightforward integration with common controllers. This blend of high-resolution feedback, efficient drive, and robust power transmission forms a strong foundation for repeatable motion with high consistency.

The HFP-30 Servo Programmer (optional accessory) is not suitable for programming this servo; it is for testing the motion function only.
Delivery times

Delivery will be made on the next working day or after receipt of payment.
According to experience, delivery times are:

  • Germany: 2-3 working days
  • European Union: 5-8 working days
  • United Kingdom 5-8 working days
  • Switzerland 8-12 working days
  • Ukraine/Iceland/Faröere 8-12 working days
Should you require any further information, please contact us.

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

Technical Download

  • 3D CAD model servo HSR-M9382TH.stp Download
