Servo Programmer DPC-11

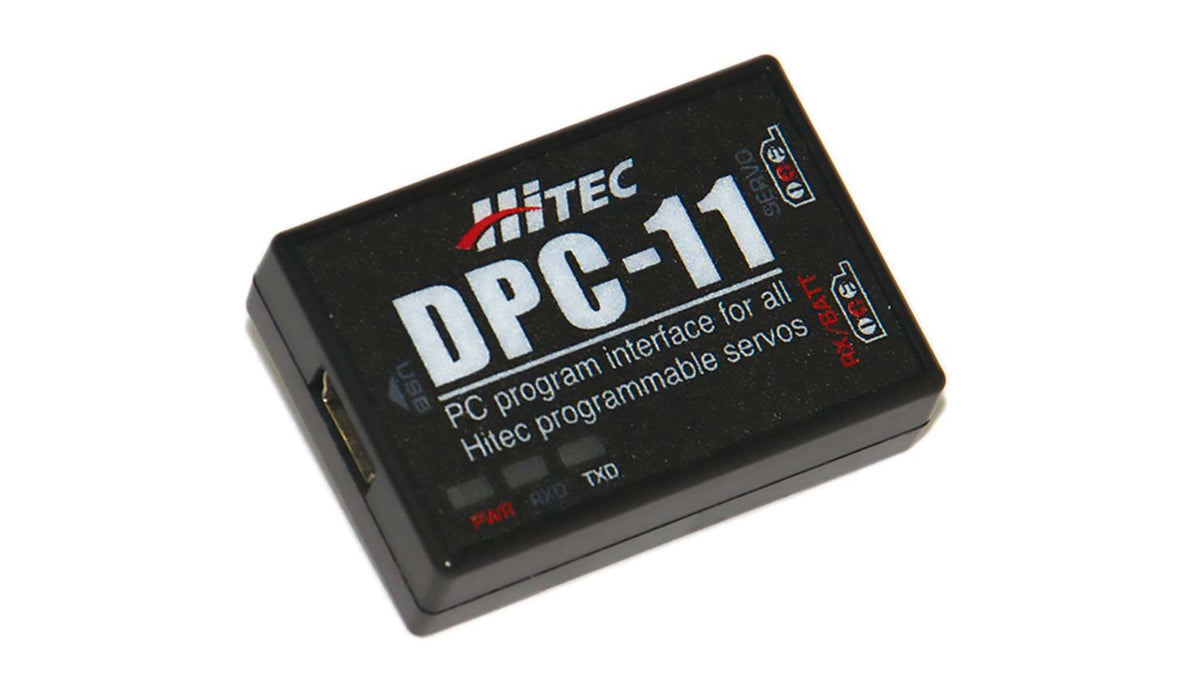

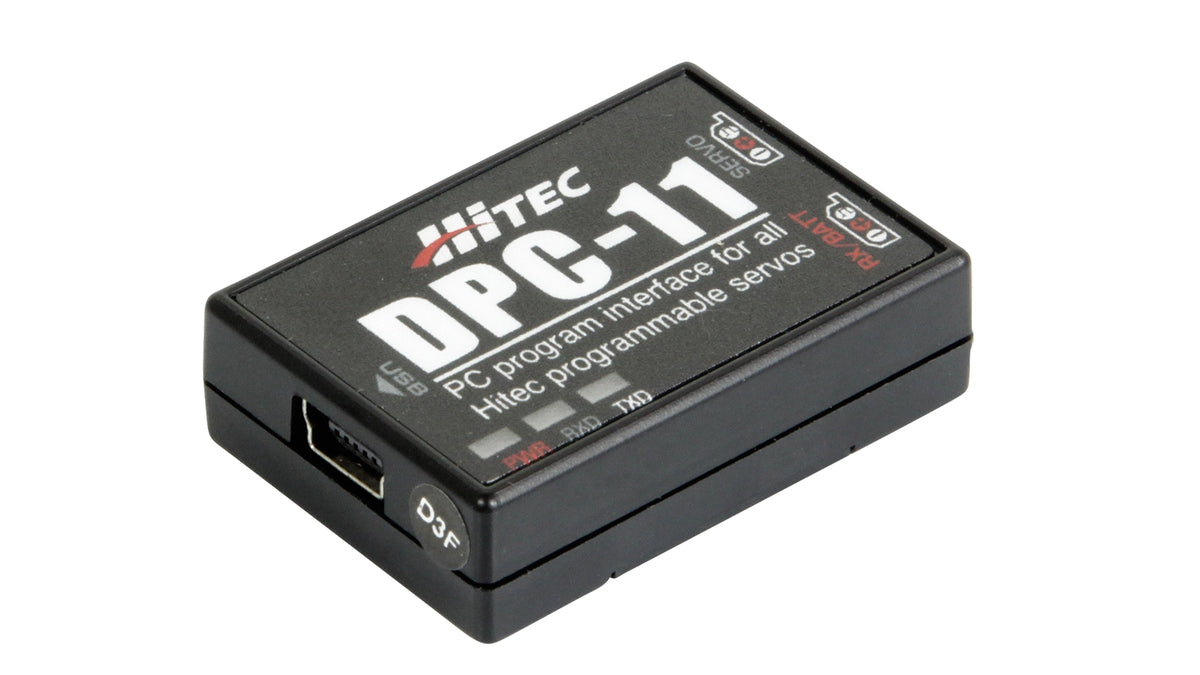

DPC-11 Servo Programmer

The servo programming device DPC-11 (dongle PC) is used for programming/adjusting and testing HiTEC digital servos with the PC.
Especially when you have to adjust several servos, the clear PC software simplifies the setting.
Suitable for the following HiTEC servos: HS-5XXX, 7XXX, HSB-9XXX and the new D series

Programmable features:
• Setting the middle and end points (180° function)
• Setting the direction of rotation (clockwise/counterclockwise)
• Setting the dead zone (electronic "game")
• Adjusting the speed (servo can be made slower)
• Adjusting the soft start (servo runs slowly to its neutral position when first switched on)
• Setting the fail-safe function
• Setting the overload protection (servo becomes “soft” if overloaded for too long, which in the worst case prevents it from burning out)
• Save or load settings
• Factory reset
Operating voltage 4.8 - 8.4V, depending on the servo type

The associated software is available free of charge in the download area of our homepage.
